Parts to Convert a B64 to a B64D

Building notes

Use the

92084 B64 Spur Gear, 78T 48P

if you are going to run in the 13.5 class.
Do not use the #92010 B64 Gearbox Shim in the B64 kit that goes under the case.
Swap the B64’s #25204 3x16mm FHCS to the B64D’s #25202 3x10mm FHCS.
Use the
B64D setup sheets
to build the car for dirt
Build rear shocks using the short shock eyelets.
See the
RC10B64D instruction manual
for assembly.
The B64 slipper clutch can be used when running 13.5 motors on dirt.

Get these parts to convert

(These fluids optional. Recommended for starting setup.)

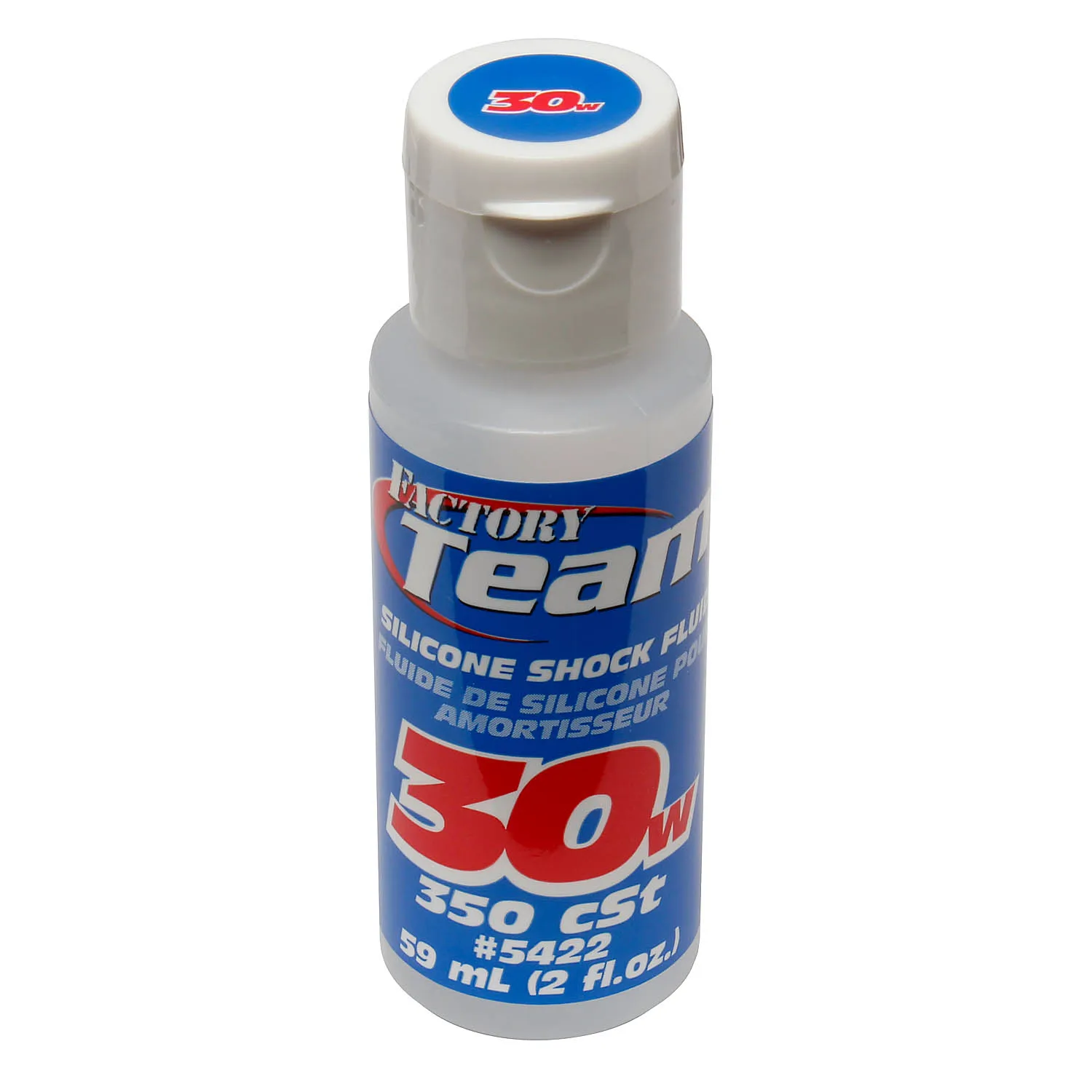

5422

FT Silicone Shock Fluid, 30wt (350 cSt),

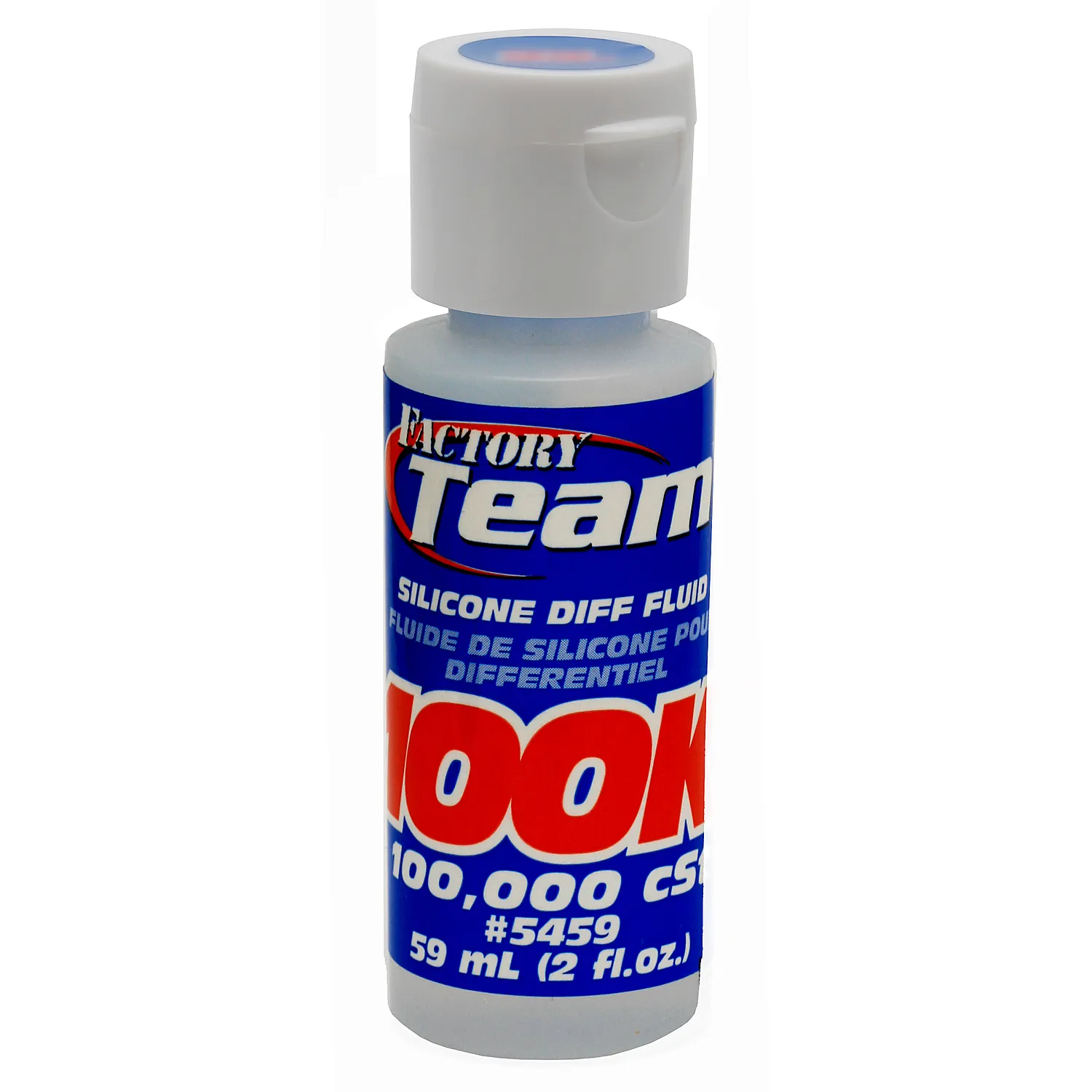

5459

FT Silicone Diff Fluid, 100,000 cSt

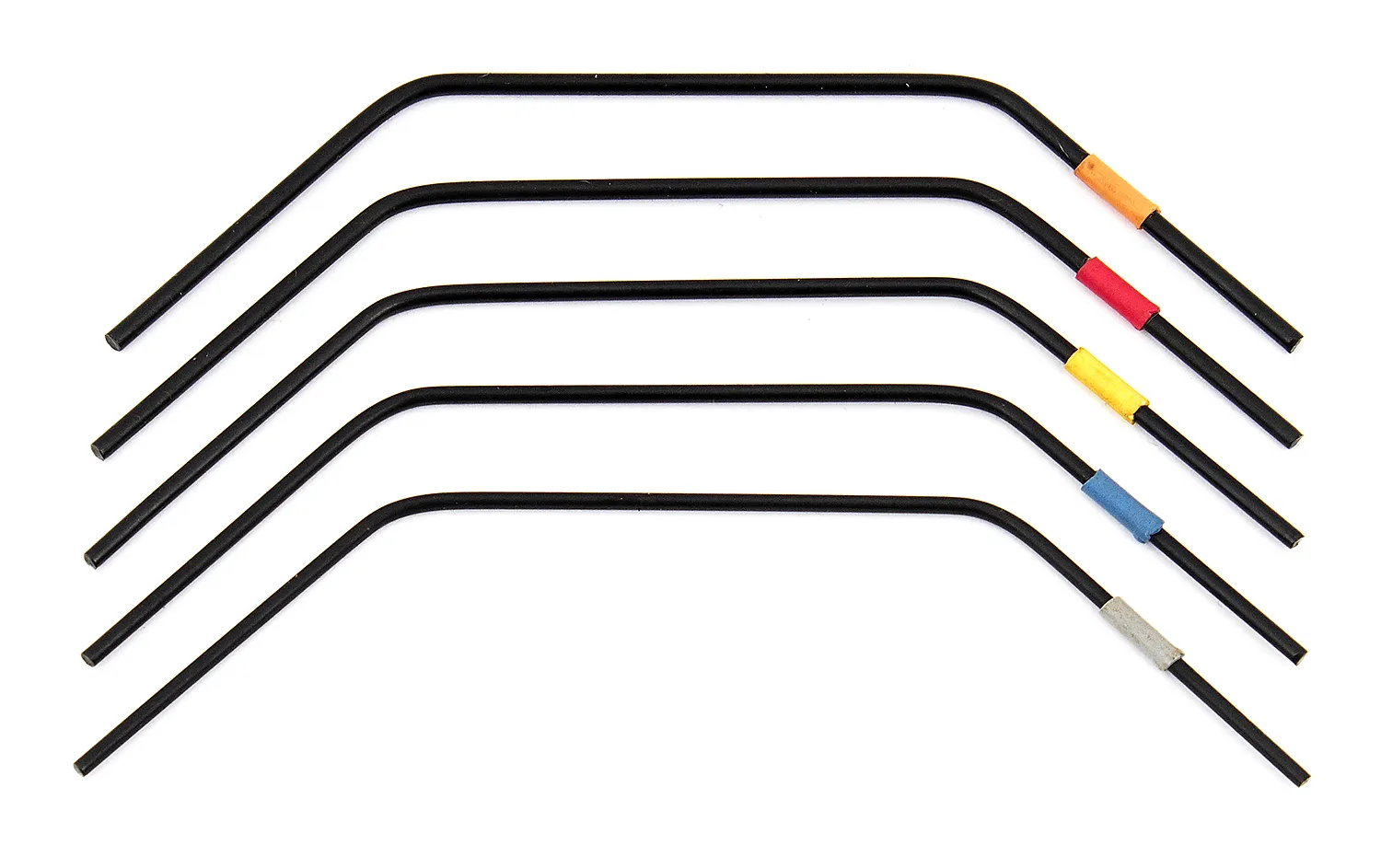

92051

B64 Anti-roll Bar Set, Front

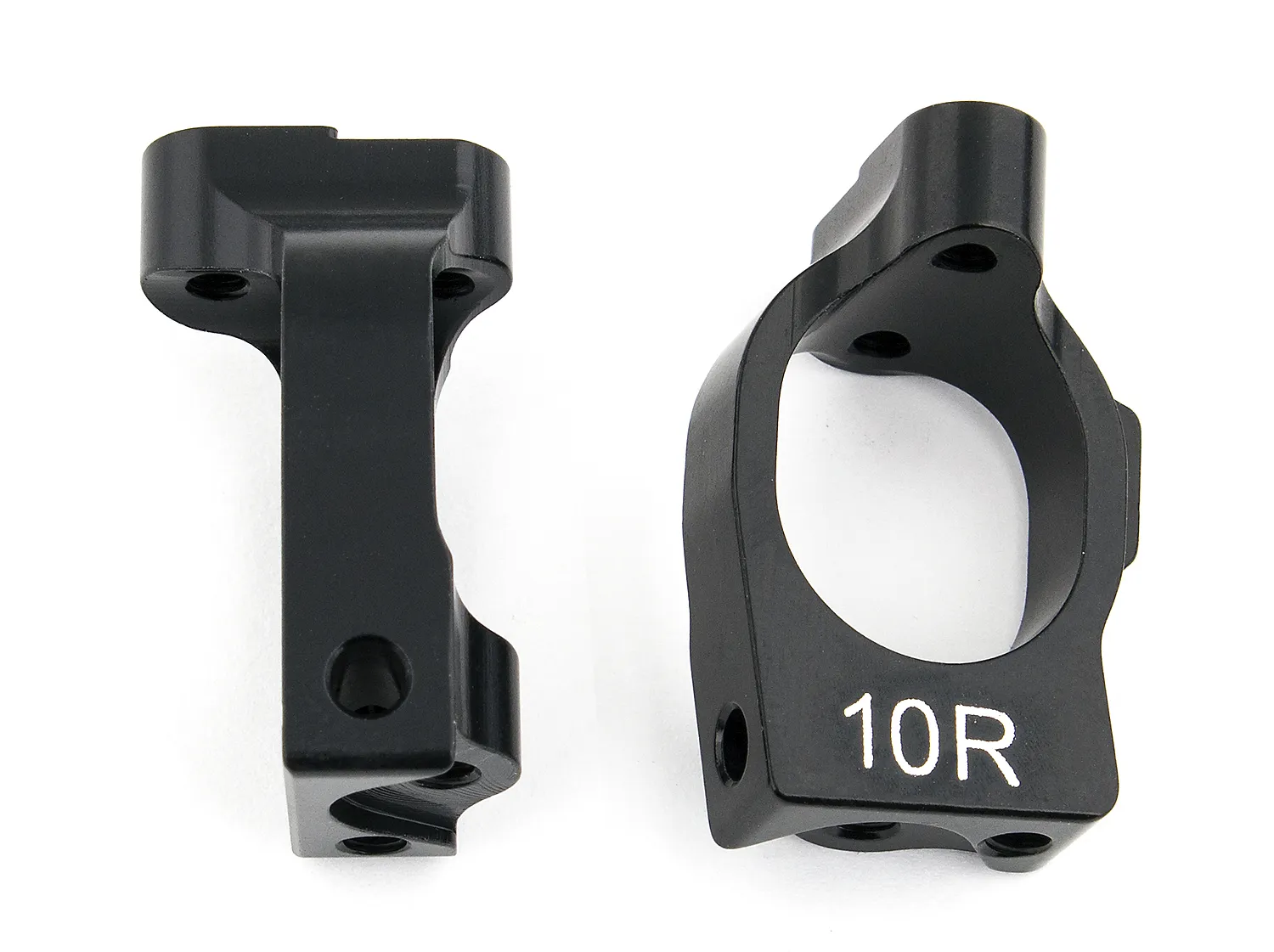

92029

B64 Aluminum Caster Blocks, 10 deg.

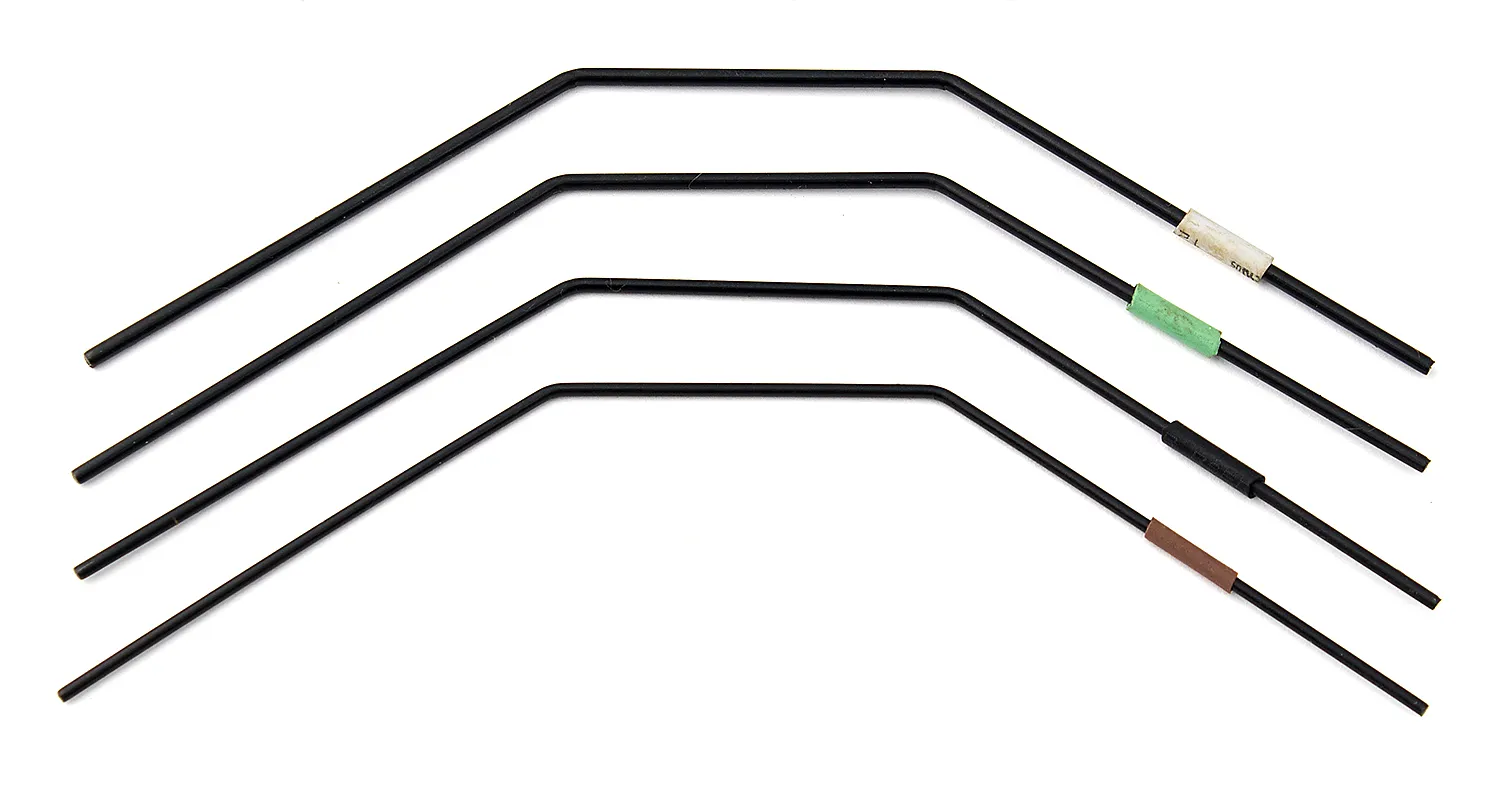

92053

B64 Anti-roll Bar Set, Rear

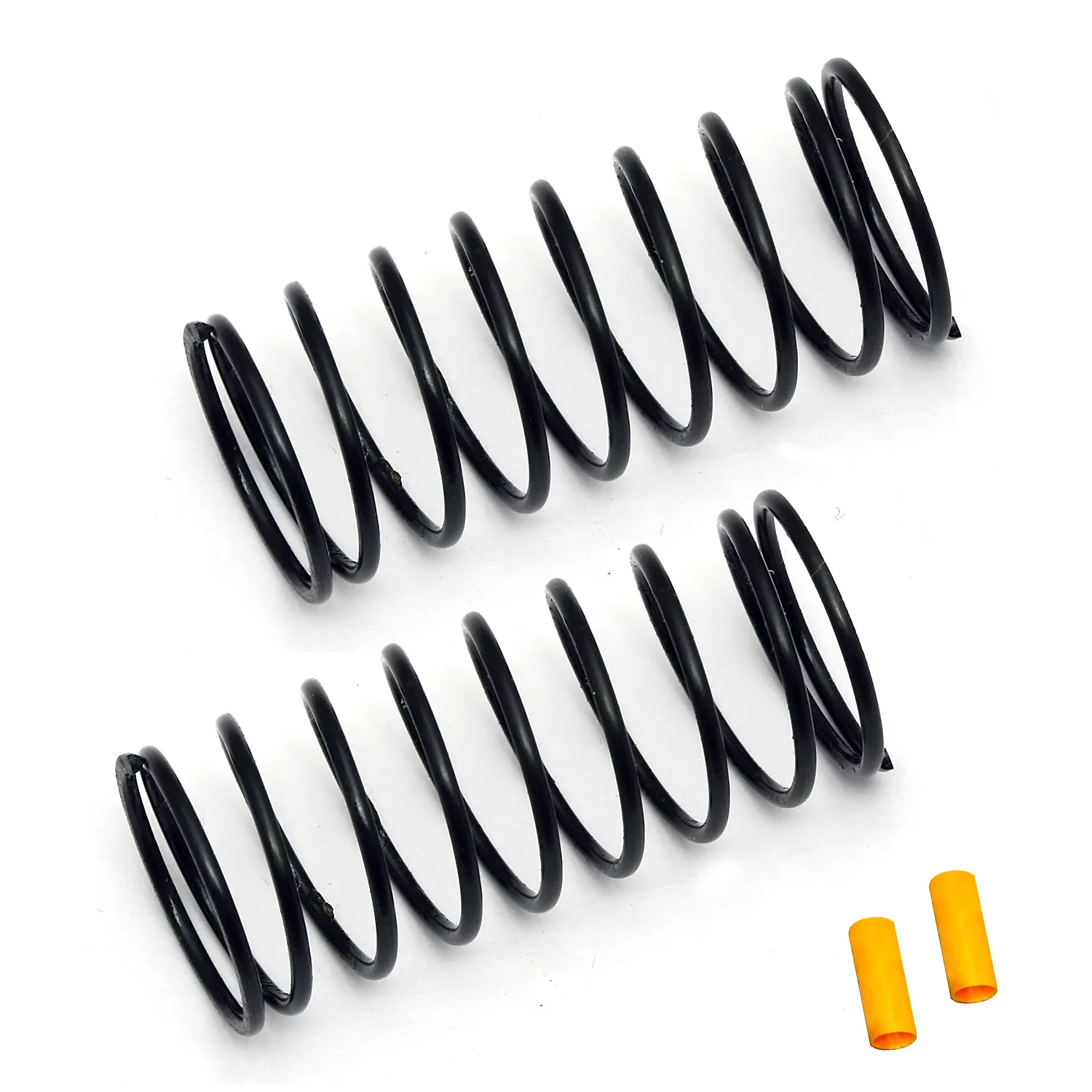

91331

FT 12mm Front Springs, yellow, 3.75 lb

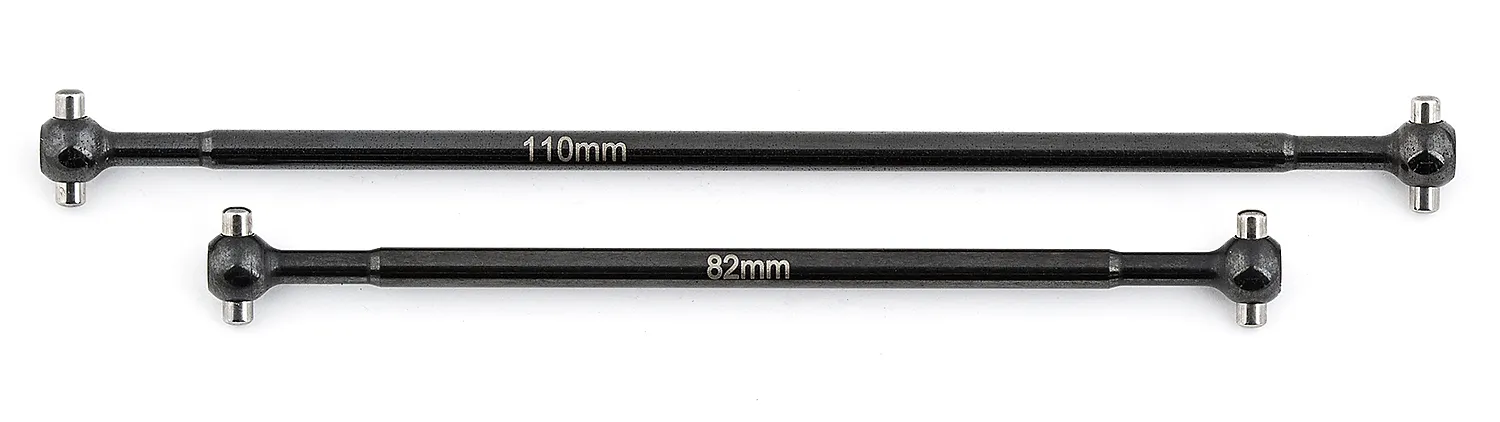

92065

B64 Center Dogbones, gear diff

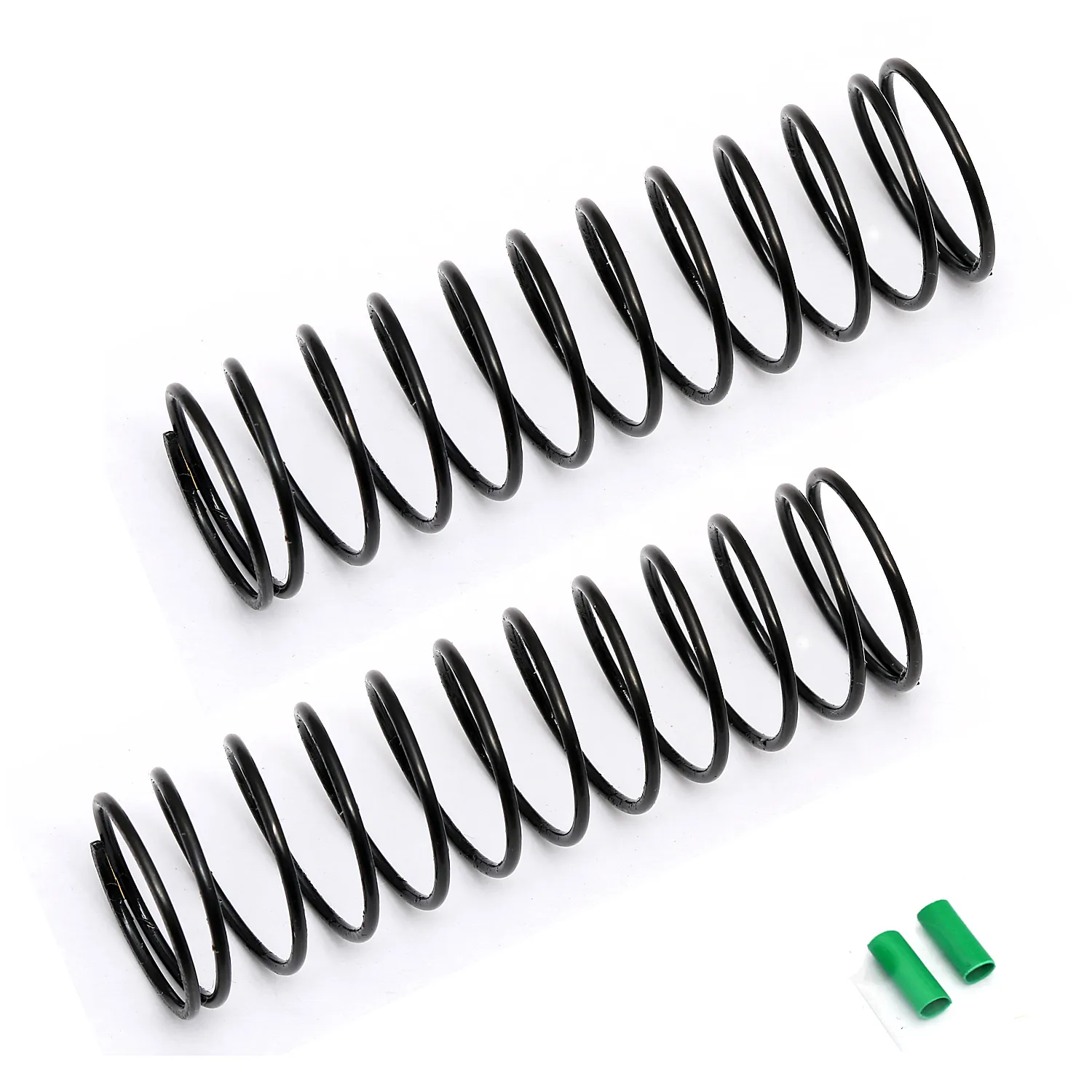

91336

FT 12mm Rear Springs, green, 2.00 lb

(Build rear shocks using the short shock eyelets)

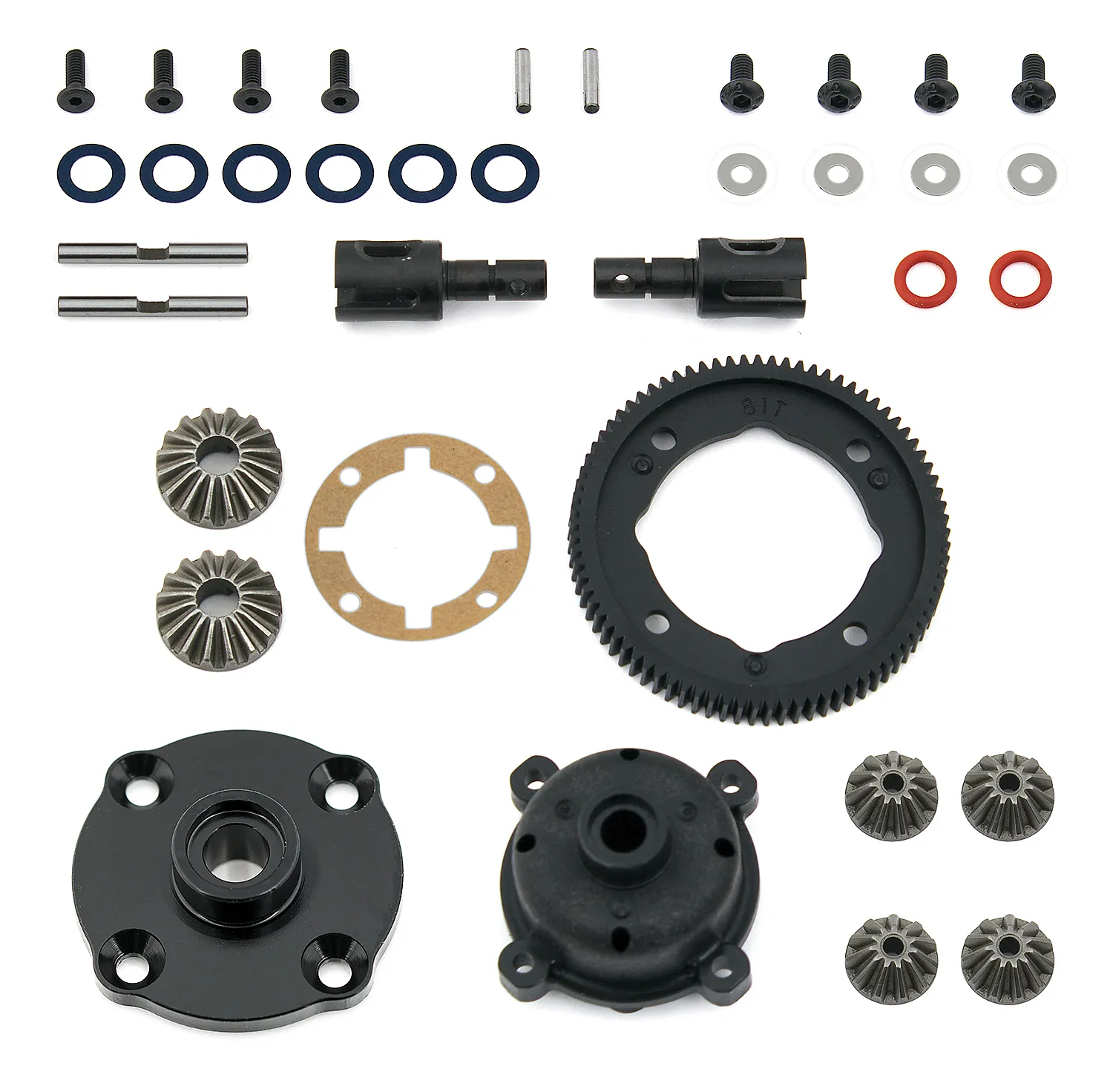

92077

92077 Diff Rebuild

92078

92078 Gasket, O-rings

92080

92080 Cases

92082

92082 Outdrives

92083

92083 Center Diff Cap

92065

92065 Center Dogbones
