BZ – Features & Pictures

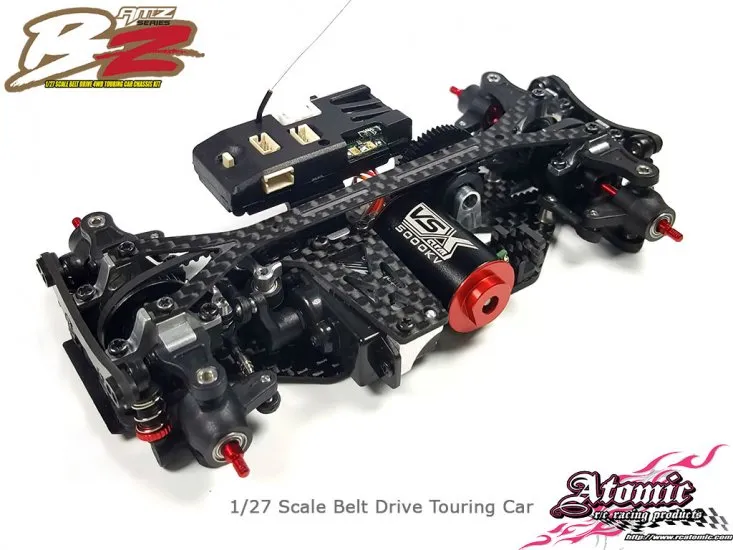

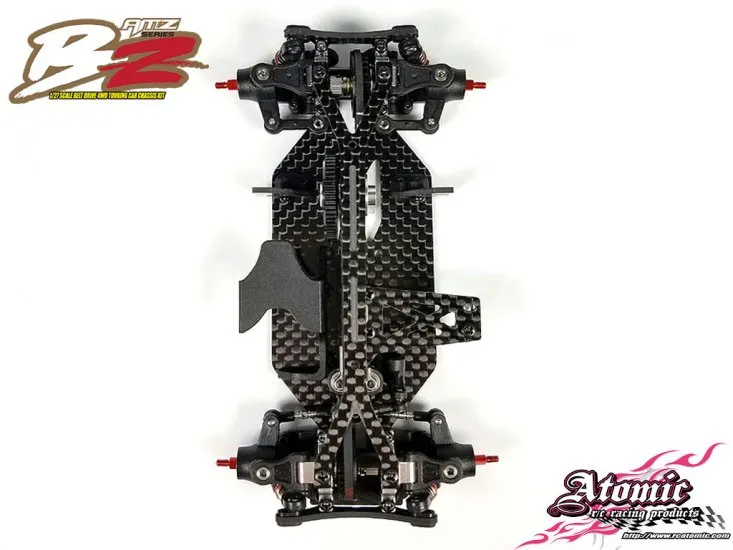

Atomic BZ, 1/27 scale Belt Drive Touring Car .

Specifications

• Overall Length: 120mm

• Overall Width: 69.5mm...

• RTR Weight: approx. 120 gram (without Body Shell)

• Wheelbase: 98mm (optional 94 and 90mm also available)

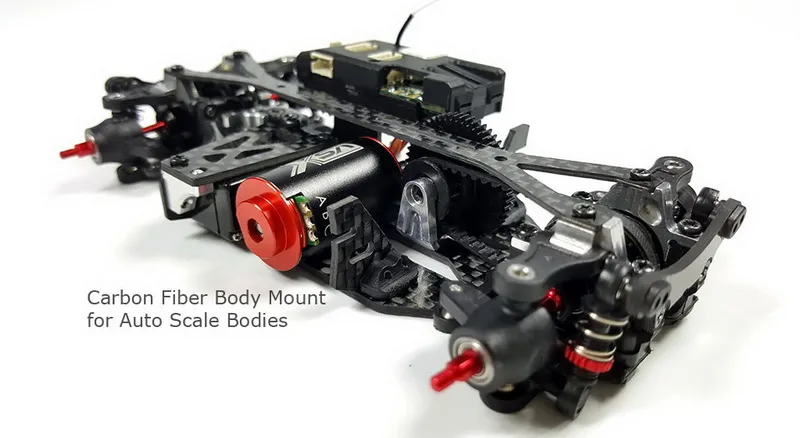

• Able to fit Mini-Z Auto scale bodies, wide or narrow type.

Features:

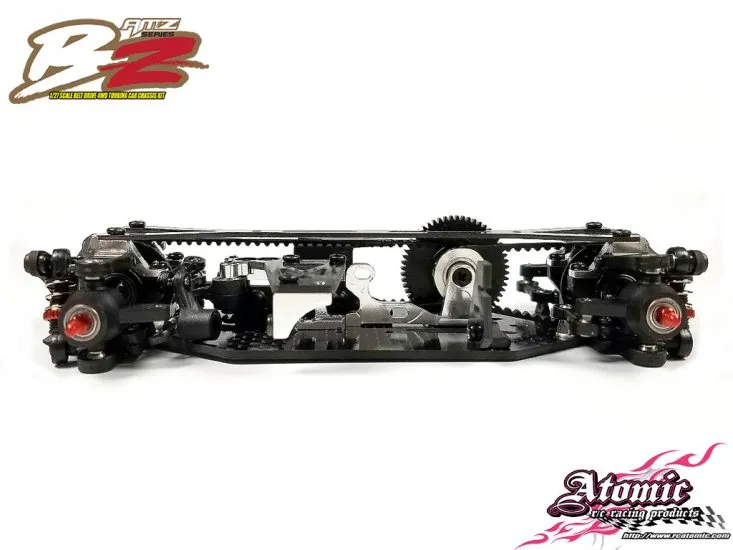

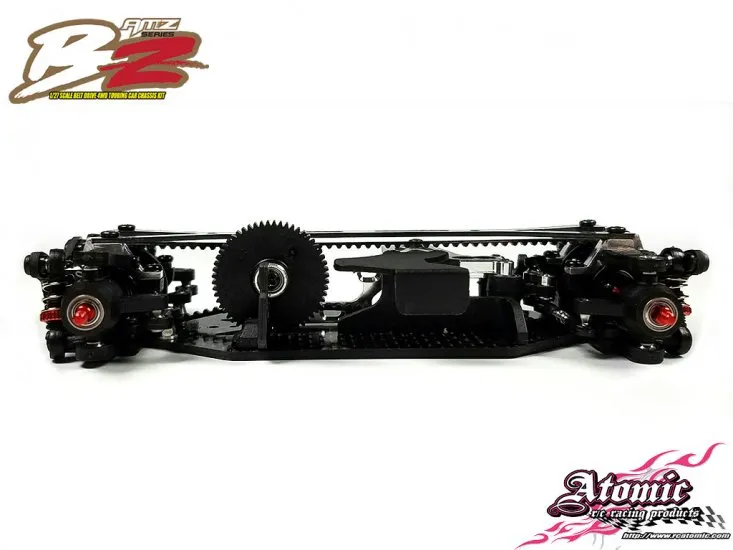

• Belt Drive 4WD

• Double Wishbone Suspension System

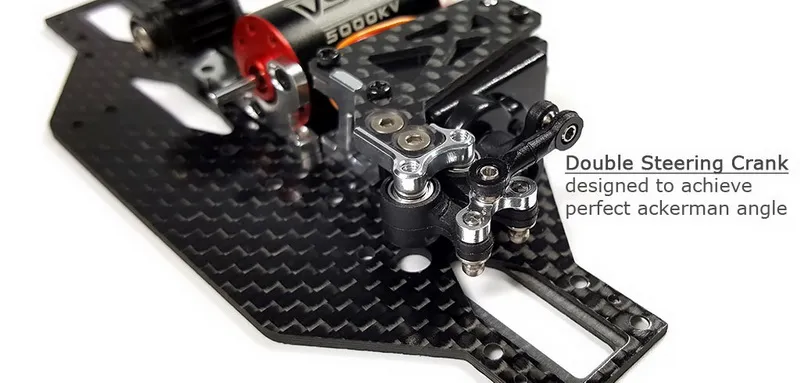

• Double Bell Crank Steering System

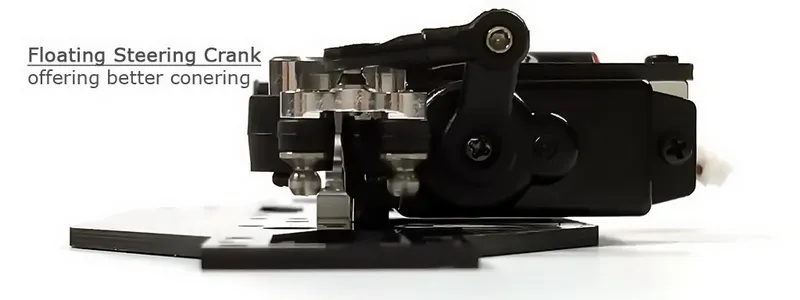

• Floating Steering System and Servo Mount

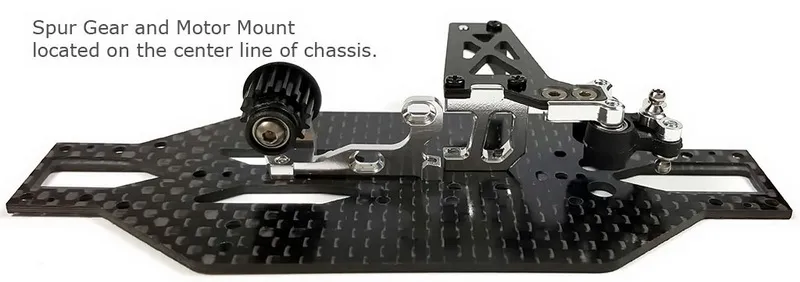

• Cantilever Spur Gear Mount

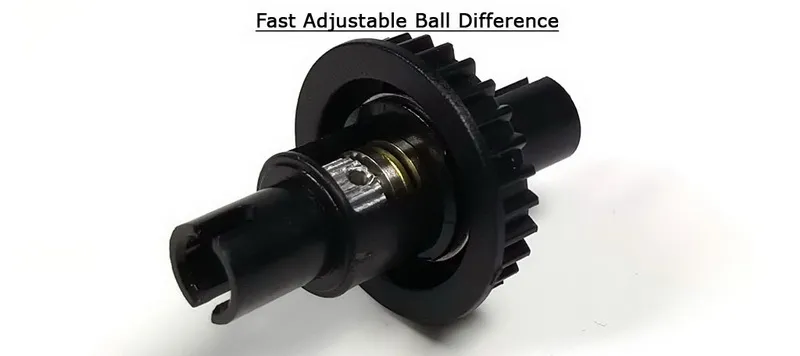

• Ball Differentials

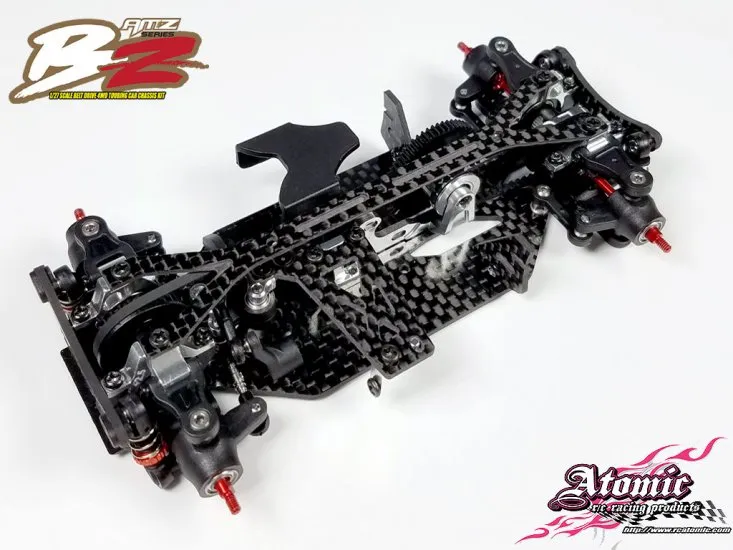

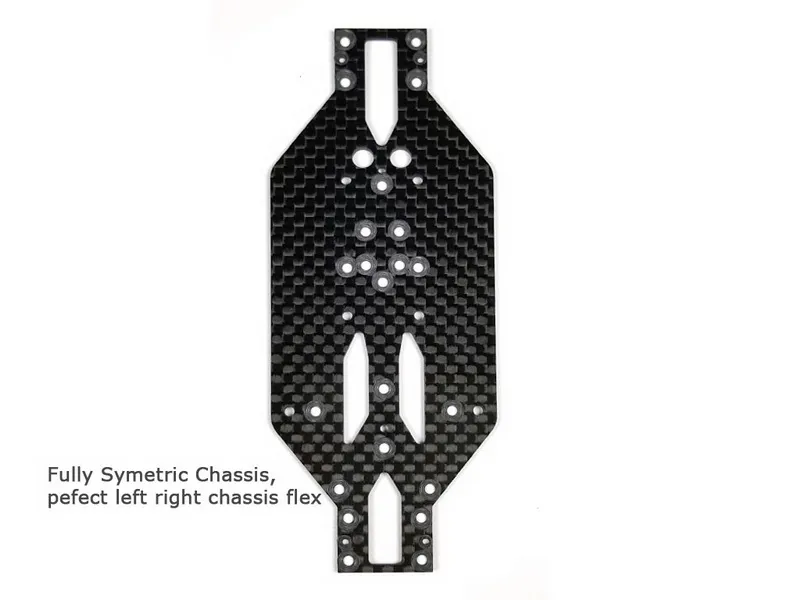

• Symmetrical Carbon Fiber Chassis and Upper Deck

• Carbon Fiber Shock Towers

• Aluminum Universal Drive Shafts
