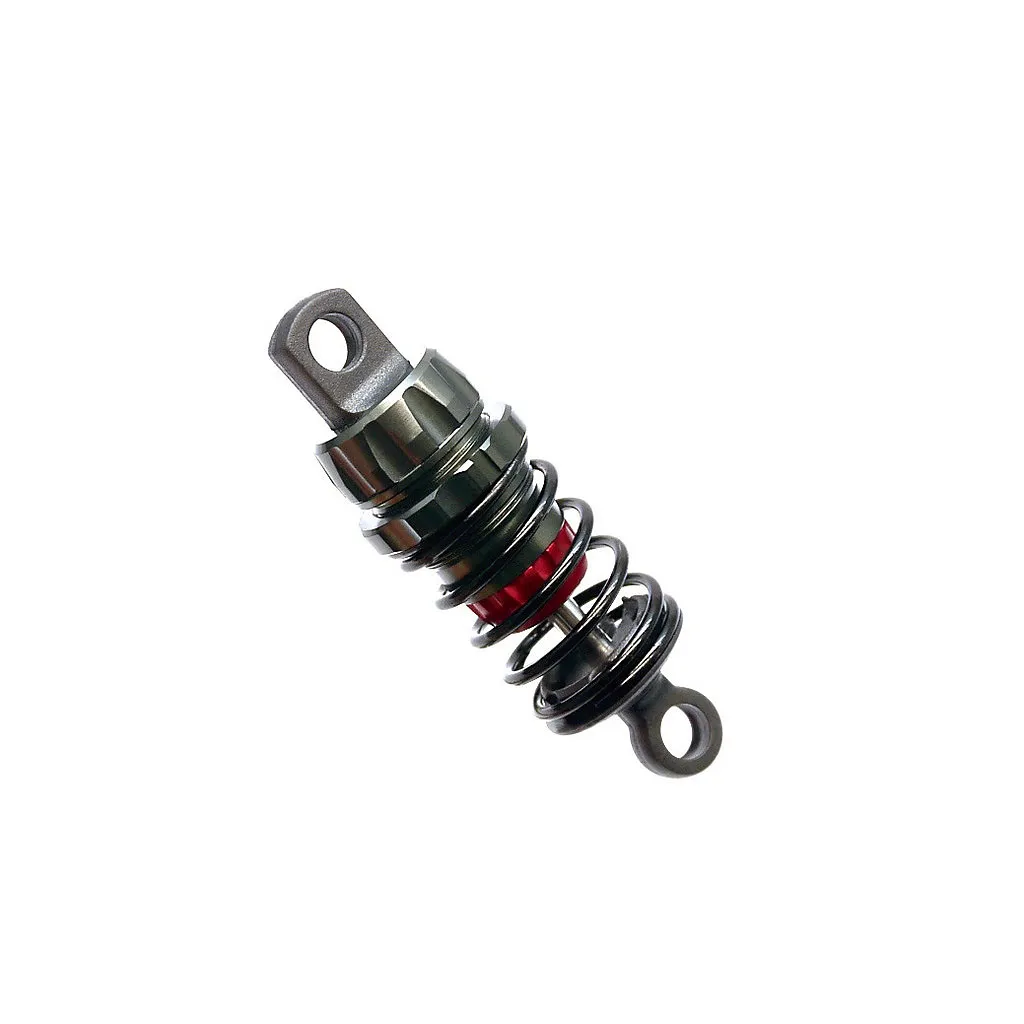

Ghost Evo – True Big Bore Touring Shocks Set

- VBC Racing - True Big Bore Touring Shocks Set D-05-VBC-0094 -

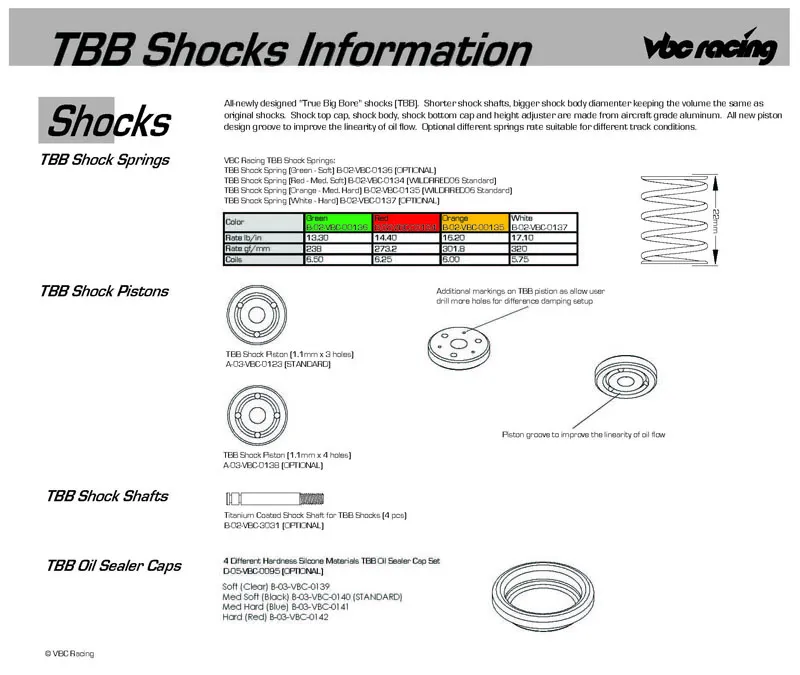

All-newly designed 'True Big Bore' shocks (TBB). Shorter shock shafts, bigger shock body diameter keeping the volume the same as original shocks. Shock top cap, Shock body, Shock bottom cap and Height Adjuster made from aircraft grade 7075 Alumimum. All new piston design with groove to improve the linearity of oil flow. Optional 4 different spring rate suitable for different track conditions.

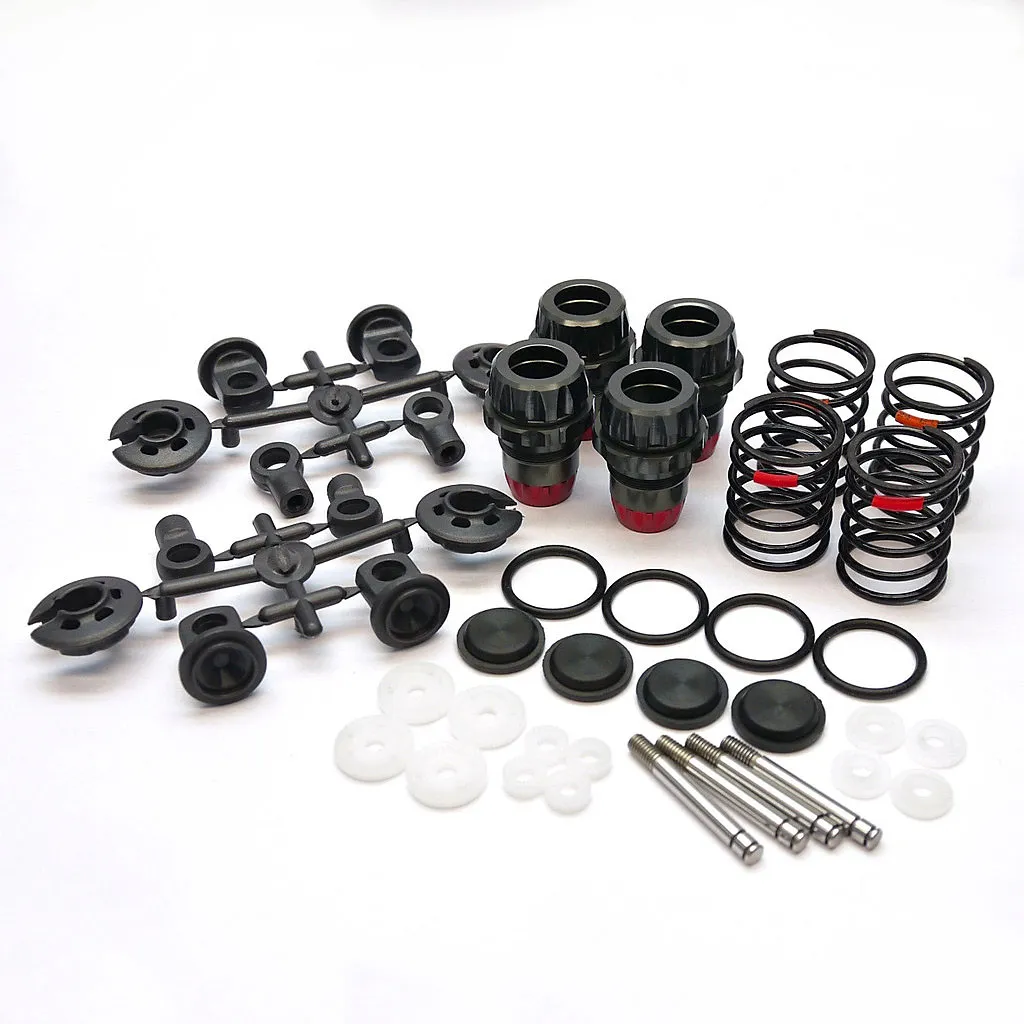

Package contains:

B-02-VBC-0120
TBB Shock Body
4

B-02-VBC-0121
TBB Shock Height Adjuster
4

A-03-VBC-0122
TBB Bottom Cap
4

A-03-VBC-0123
TBB Shock Piston (3 holes)
4

A-03-VBC-0124
TBB Shock Bottom Connector
4

B-02-VBC-0125
TBB Shaft Cap
4

A-03-VBC-0126
TBB Shaft Guide
4

B-03-VBC-0127
TBB Shock Shaft
4

B-03-VBC-0128
TBB Sealer O-Ring (Shock Height Adjuster)
4

B-03-VBC-0012
TBB Shaft Sealer O-Ring
4

B-03-VBC-0129
M2 E-Clip
10

A-03-VBC-0130
TBB Shock Top Connector
4

A-03-VBC-0131
TBB Spring Bottom Support
4

B-03-VBC-0132
TBB Short Oil Sealer Cap (Medium Soft)
4

B-02-VBC-0133
TBB Shock Body Cap
4

B-02-VBC-0134
TBB Shock Spring (Red-Medium Soft)
2

B-02-VBC-0135
TBB Shock Spring (Orange-Medium Hard)
2
