IF14-II Fwd – Overview, Features & Specifications

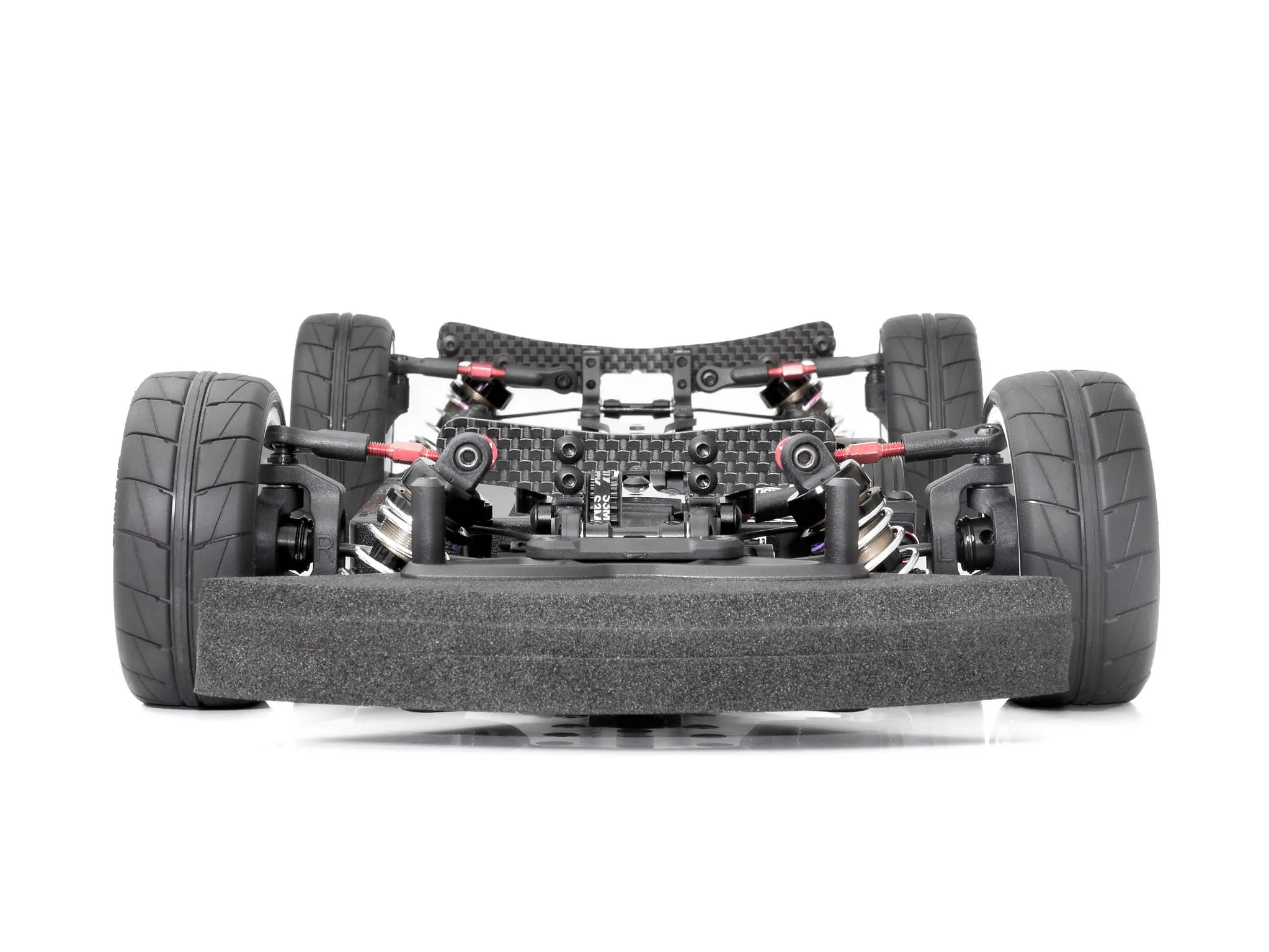

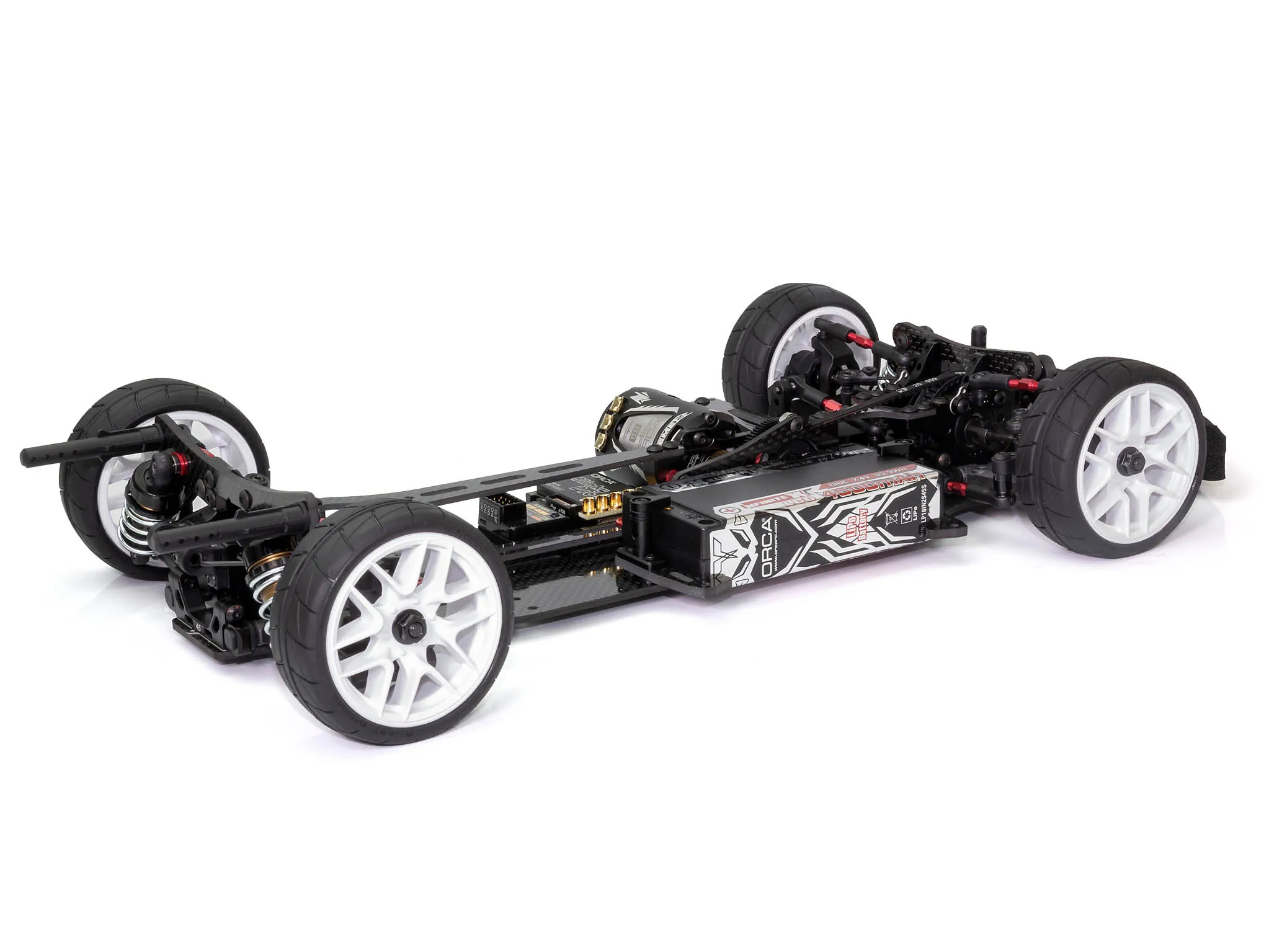

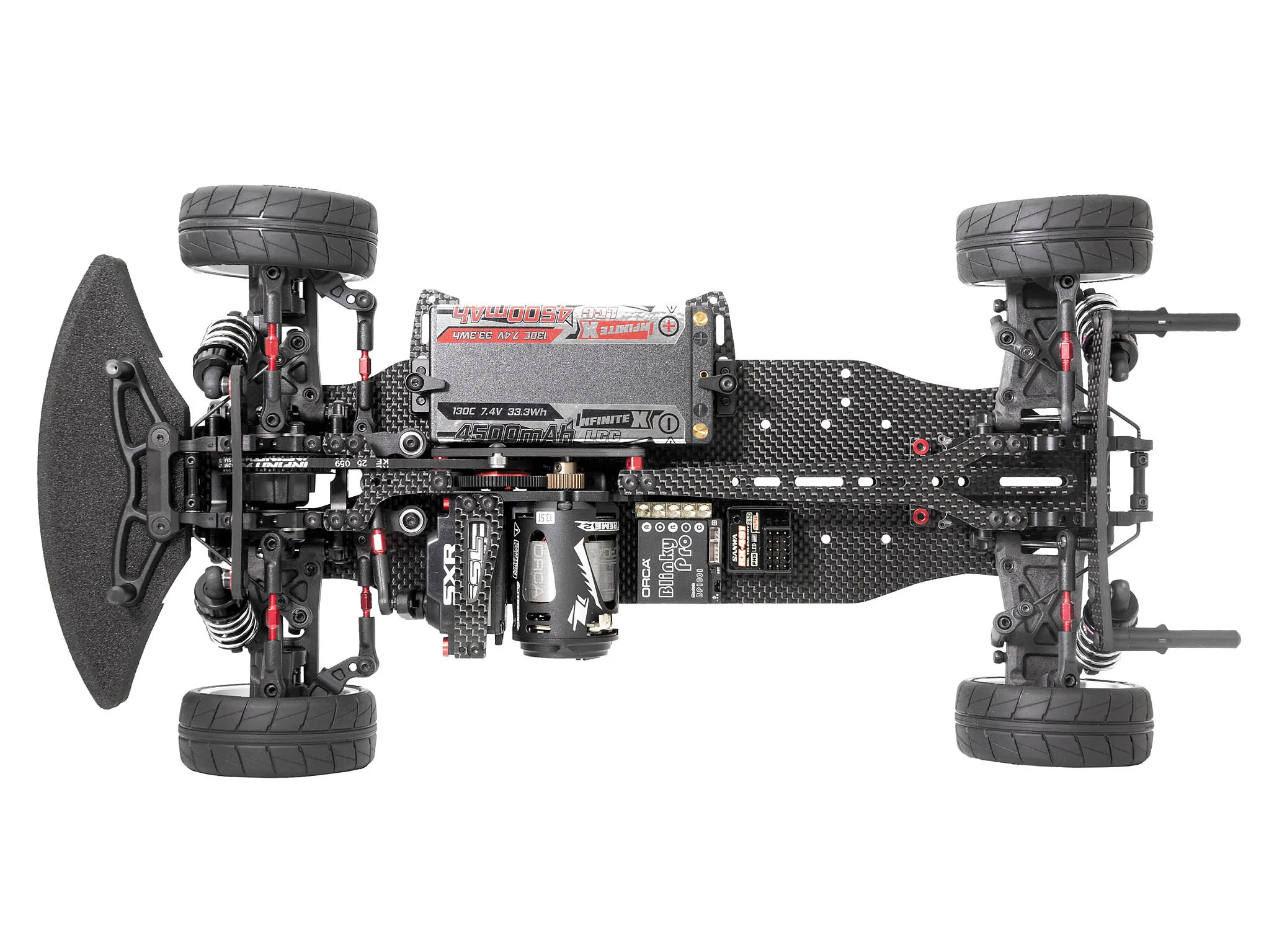

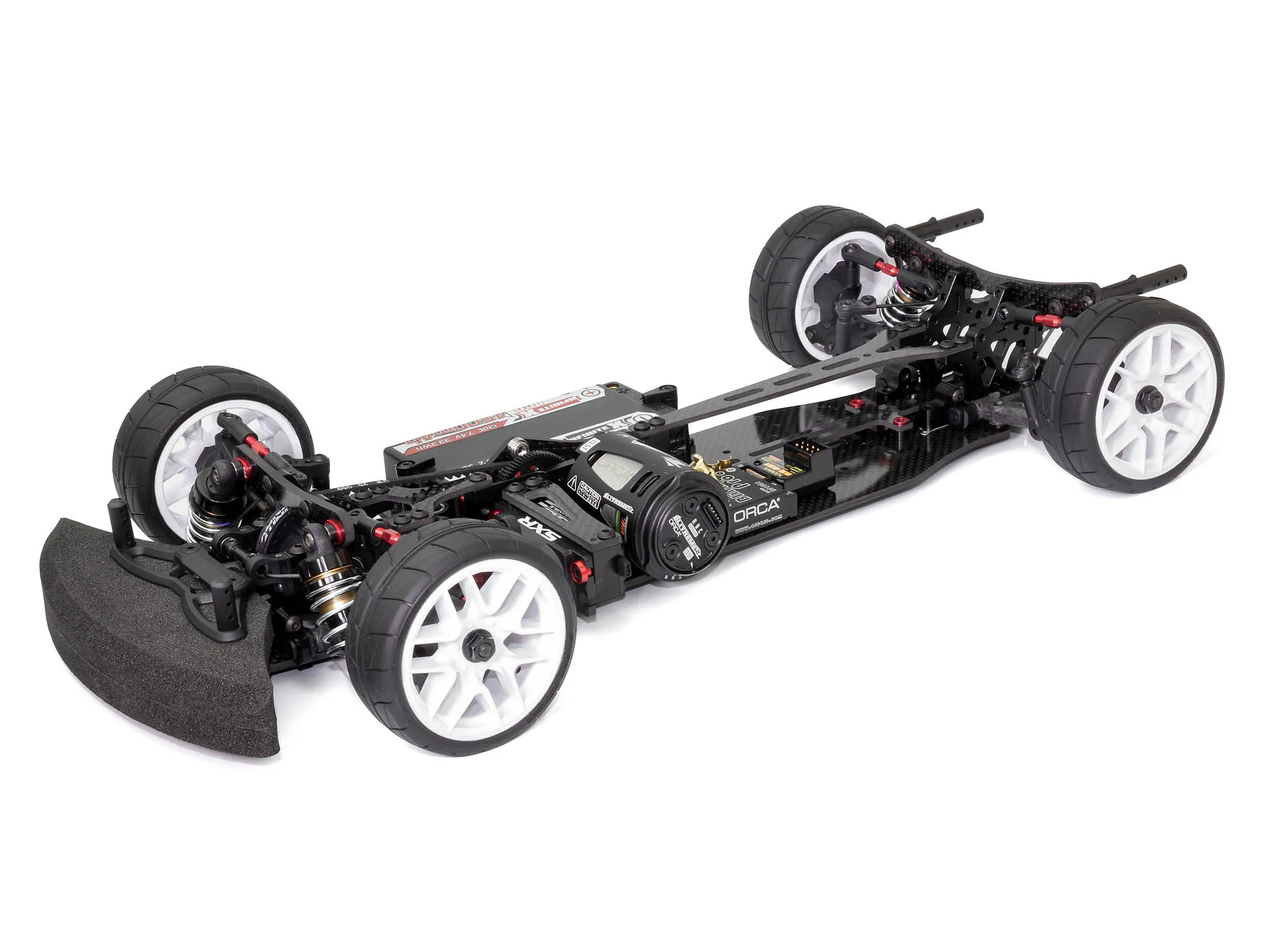

INFINITY NEW IF14-2 FWD – 1/10 ELECTRIC FWD TCAll new designed 1/10 scale electric FWD touring car based around the race proven IF14-2.A compact steering system is specially designed to achieve the ideal front-rear weight balance. The heaviest items of the car such as the steering servo, motor and battery are laid out towards the front section as much as possible. In addition, a dedicated balancing weight is installed inside the front bumper.By having a layout with the battery on the right hand side of the chassis and the steering servo and other electronics on the left side, an ideal left-right weight balance is achieved.Achieves excellent throttle response by making the front drive belt as short as possible while adopting a mechanical layout that takes weight balance into consideration.Front and rear suspension parts from the race proven IF14-2 offer a wide range of tuning and setups possibilities.Gear differential, front drive shaft and center pulley are the same as IF14-2.Compatible with shorty or standard size LiPo batteries.

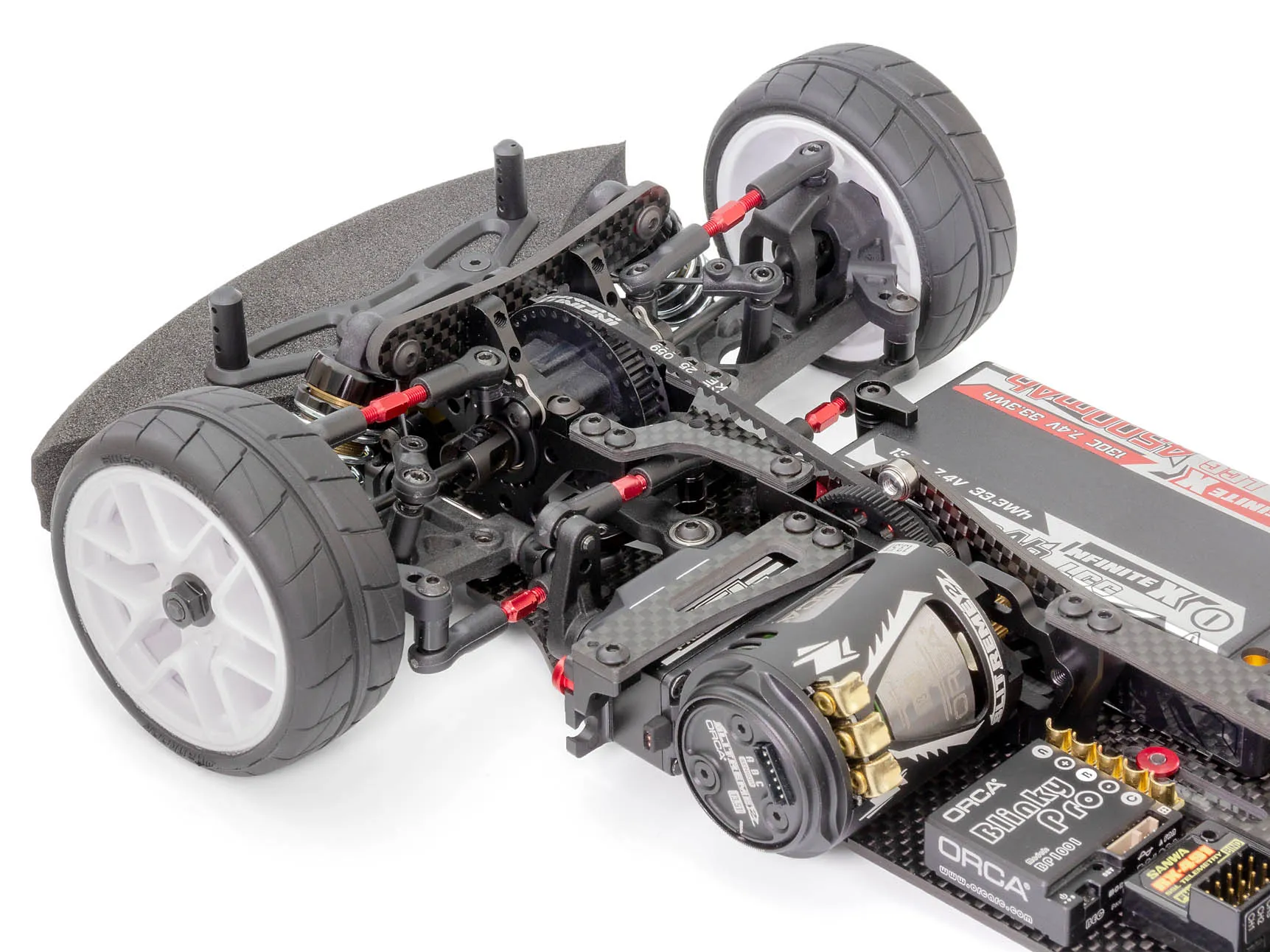

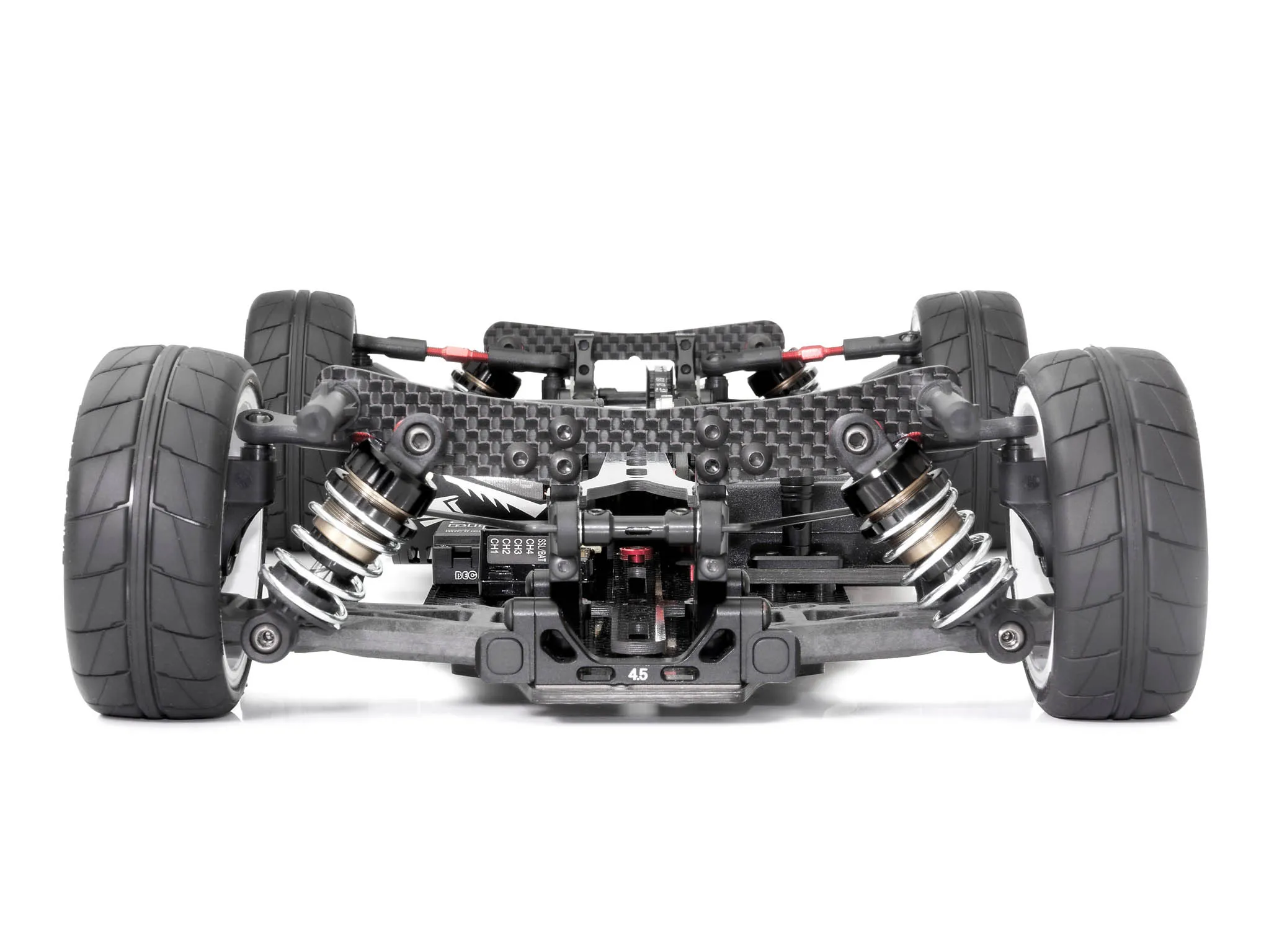

Newly designed front drivetrain layout.Newly designed servo-integrated motor mount.Newly designed steering system.Newly designed adjustable rear chassis stiffener system.Newly designed upper and lower integrated rear bulkhead.Newly designed graphite motor mount support plate.Newly designed graphite 2 piece top deck.Newly designed graphite 2.25mm main chassis.Newly designed bumper balance weight (85 grams).Suspension system, gear differential and front drive shaft are 100% compatible with IF14-2.Total parts compatibility with IF14-2 approx. 80%.Scheduled to start shipping in September 2021.
