S1 V3TYPEREVO – Features, Specs & Pictures

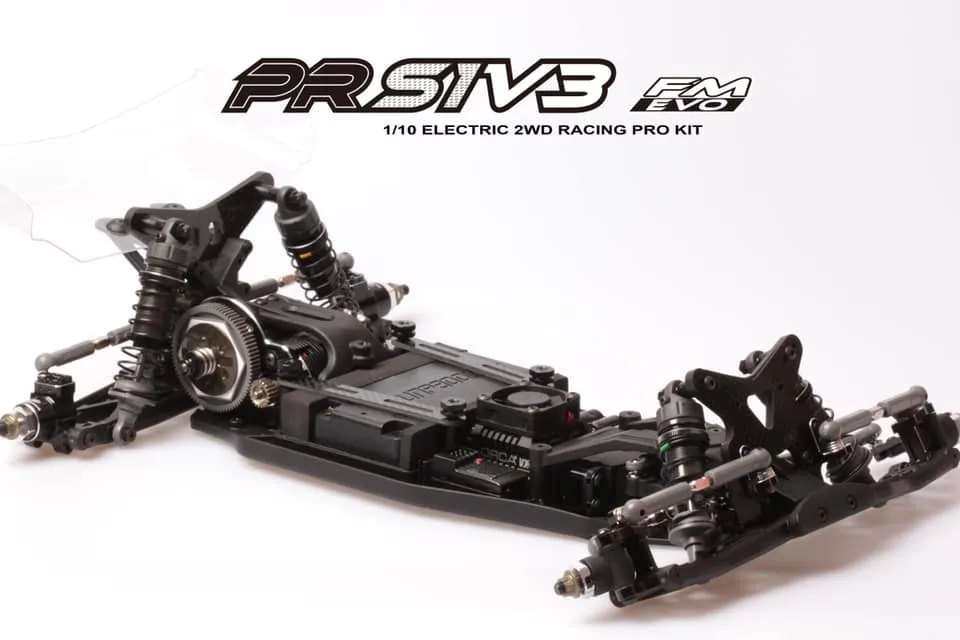

- PR S1 V3 FM Evo 1/10 Competition Electric 2WD Buggy -

The S1 V3 platform continues to evolve with a whole host of improvements to create the V3R Evo.

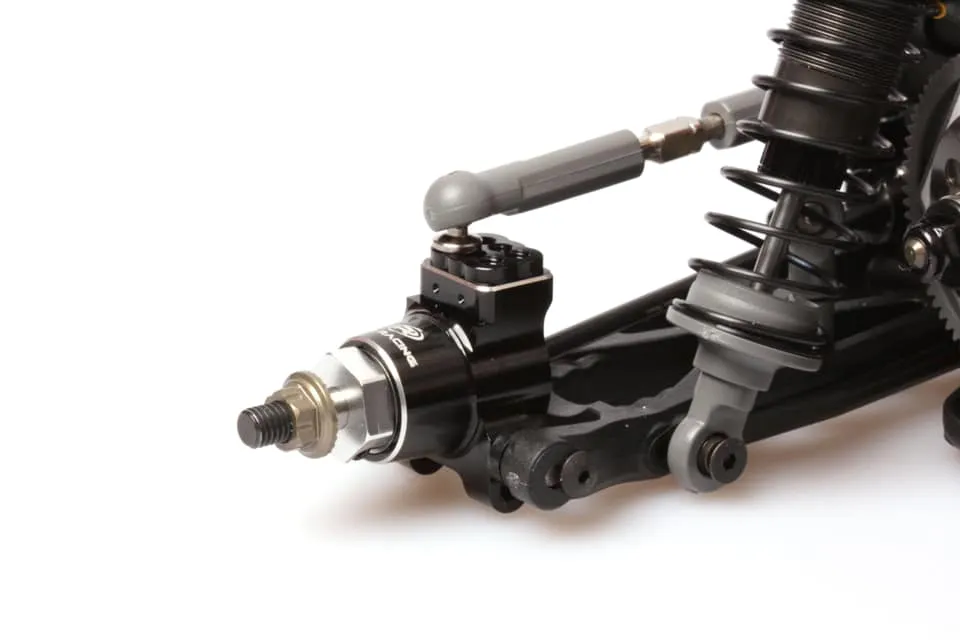

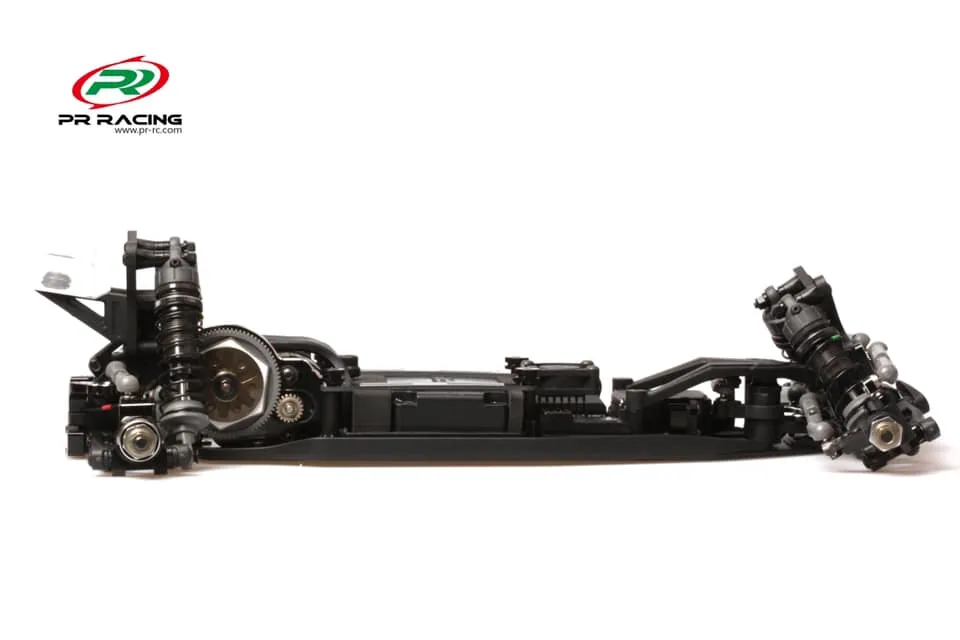

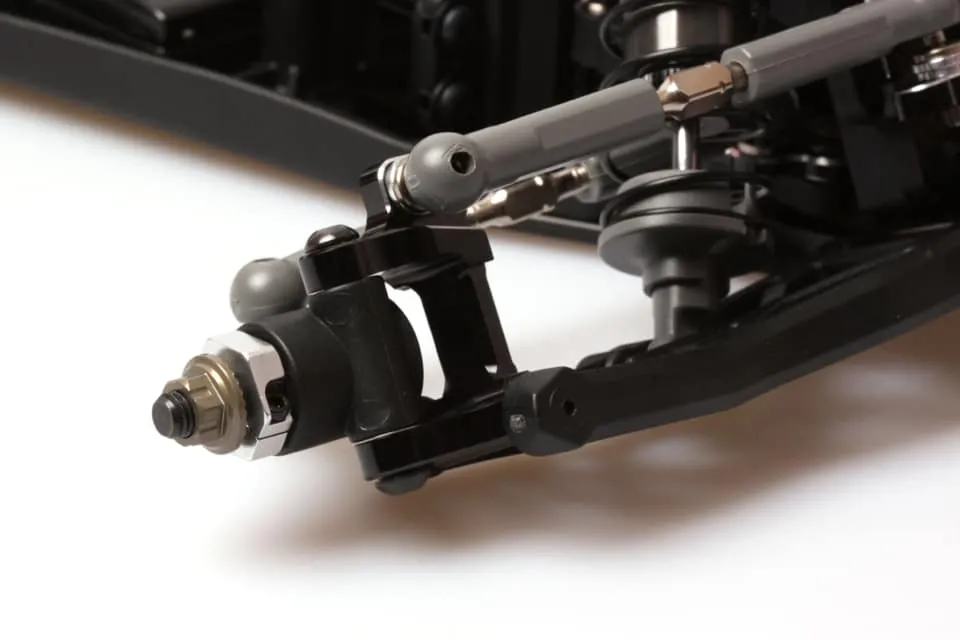

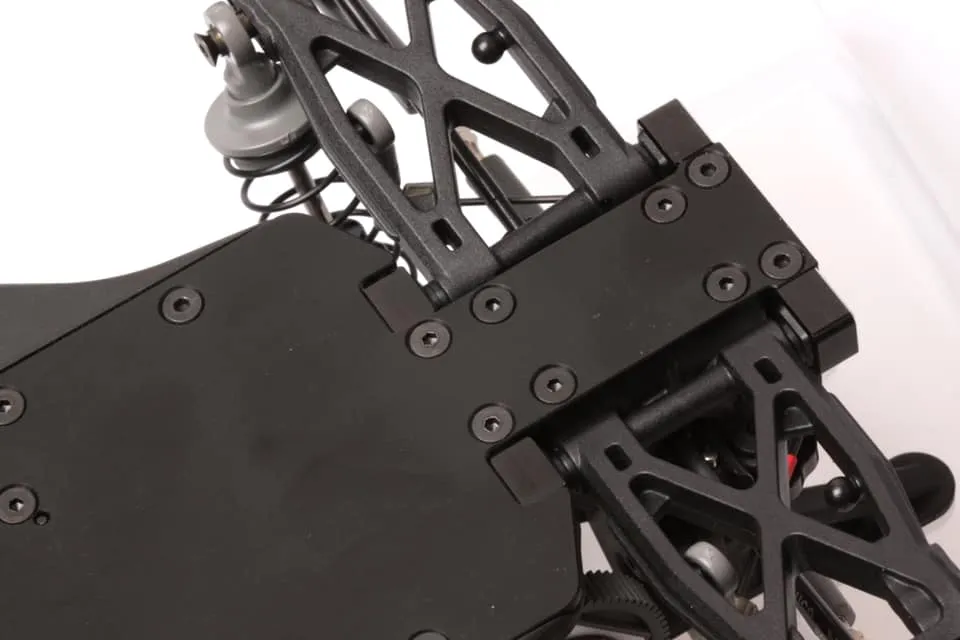

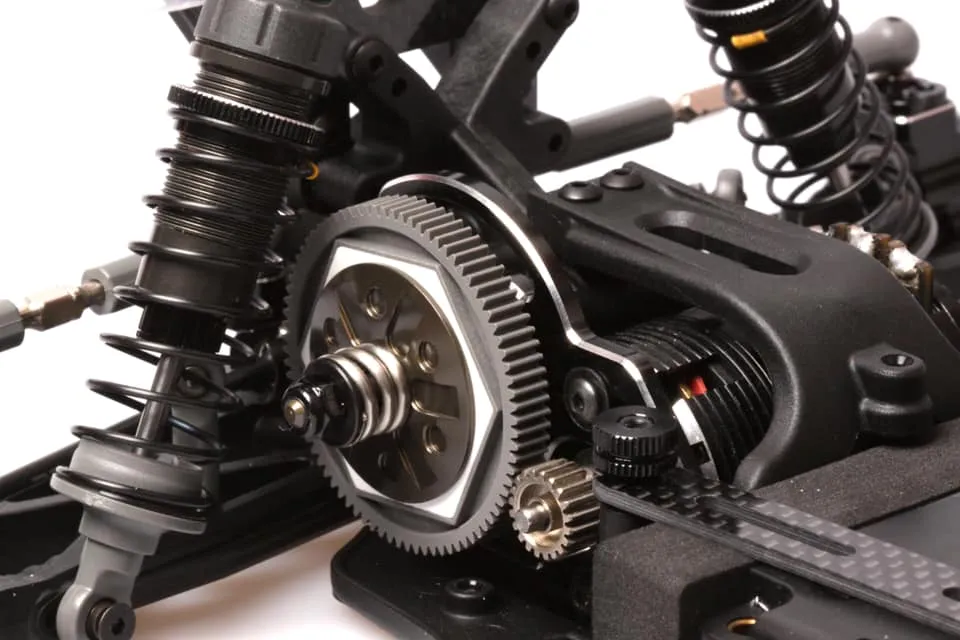

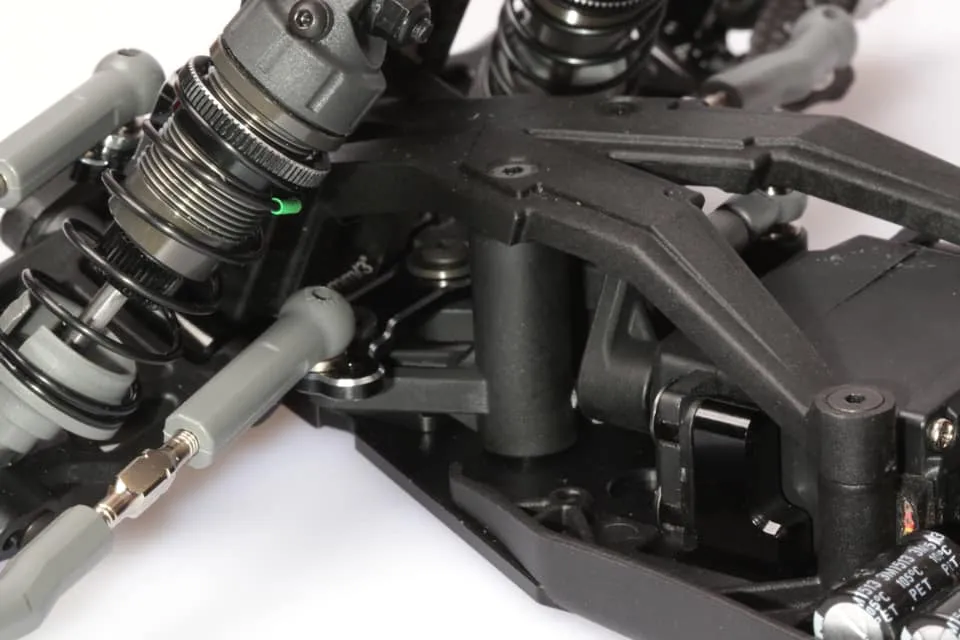

The main focus has been to make the car smoother and easier to drive on track, and this has been achieved with a revised 2.5mm thick -5mm length 7075 aluminium chassis . In addition new insert type hangers have been introduced, and in conjunction with the chassis design allow for much lower rear roll centre, keeping the car much flatter on track with smoother rotation. New Ackerman geometry, and new CNC rear hubs with longer link positons also improve on track driveability. A new motor mount has been produced to lower the motor 2mm into a recess in the chassis, and makes a particular difference on today’s high grip tracks. In addition to all the geometry and mechanical changes, the V3R Evo has been treated to a new body, designed to look sleek and offer more steering with it’s much larger forward mounted cabin.

2019 V3R Evo – Updates

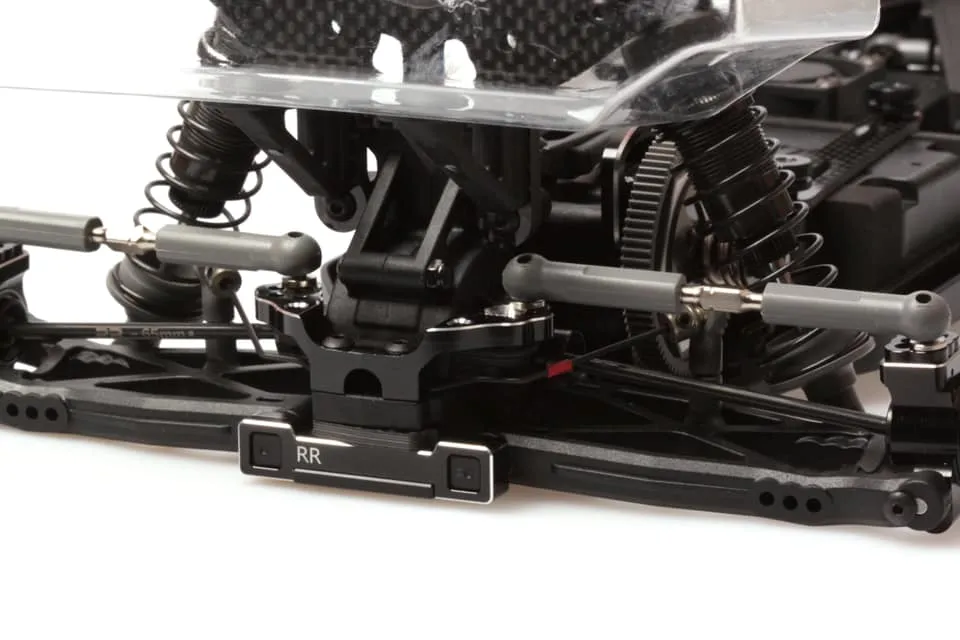

New 7075 2.5mm Thick -5mm Length ChassisNew RR and RF Hangers with Pills New CNC Aluminium Rear hubs New Low Mount (-2mm) Motor Plate with Spur ProtectorNew Ackerman Plate • High Tensile Turnbuckles – Ultra Strong • New Sleek Body New Grey Rod Ends and Shock Absorber PlasticsNew Foam Battery Spacers • New ZZ Ball BearingsSteel front AxlesAluminium +5mm, 3 Degree Front Kick Up Block
In addition to all the updates the car is still packed with lots of items normally considered to be option parts:CNC Alloy Servo Mounts 4 Degree Alloy Caster Blocks Front Camber Plates Vented Slipper PlatesSway Bar Set34 Tooth Alloy Idler Gear

SpecificationsLength: 411mmWidth: 250mmHeight: 145mmWheelbase: 280mmFront track: 248mmRear track: 248mmWeight:1480-1510 g12.8mm big bore oil fill in shock3 gears deploy in gear caseMetal gear differentialDual pad slipper mountingComplete sealed gear bearing12mm Hex fit wheelsMetric socket screw (Hex Screws)

Item Required To CompleteMetric 1.5mm, 2.0mm hex toolsMetric 5.5mm, 7.0mm 8.0mm Nut Driver2 Channel Surface Radio System (Minimum)1/10 ESC, Motor & Pinion GearHigh Speed Servo2S LiPo Shorty Battery & Compatible Lipo ChargerPolycarbonate Paint for Bodies1/10 Buggy Tires, inserts and CA Glue
