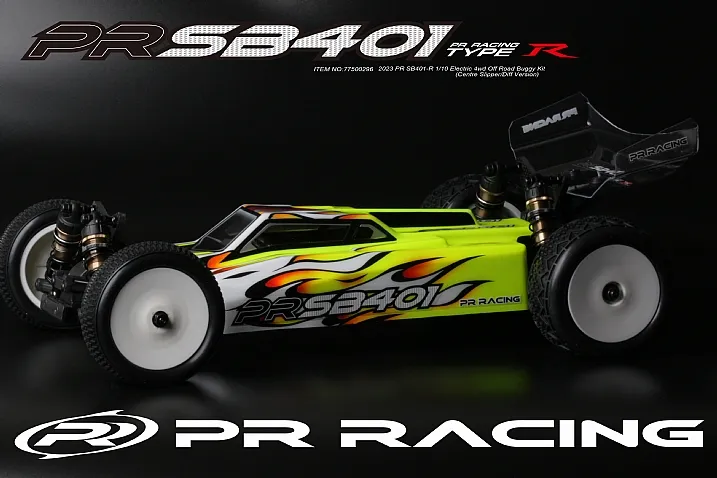

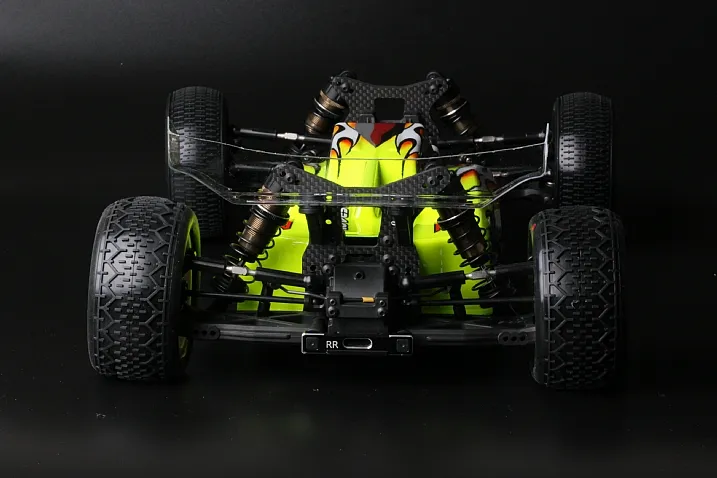

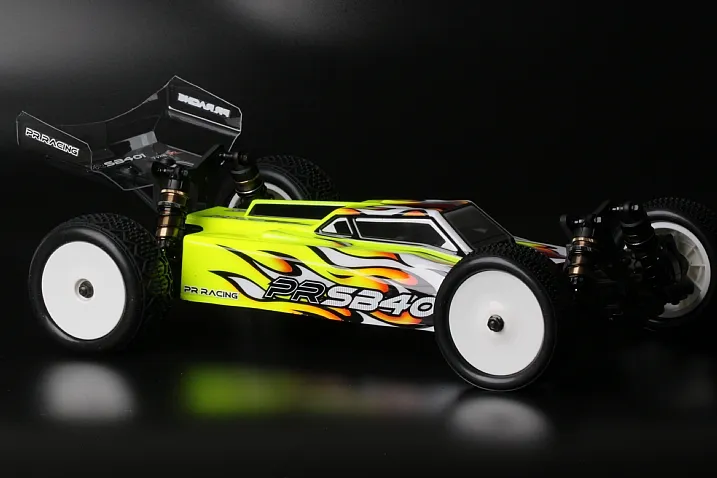

- PR SB401-R 2023 1/10 Electric 4wd Off Road Buggy Kit -

A number of key components have been totally redesigned to produce a better handling and more forgiving car to drive. The main focus has been on
the all new narrow 2.5mm chassis and plastic side-pods which utilizes a carbon fibre reinforced spine to control torsional and longitudinal flex. The additional flex has proved to increase grip, and make the car feel more balanced and easier to drive leading to faster, more consistent laps.

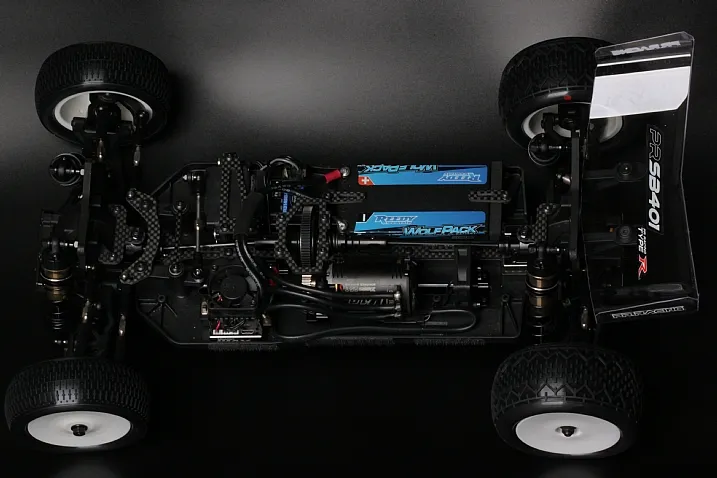

Chassis

Hard anodized 2.5mm Narrow chassis with side-pods

Plastic/carbon chassis spine with CNC alloy bulkheads

Alloy/Carbon floating servo mount

Type R ultra-low CofG Body

Transmission

New stronger/quieter pinions and ring gears

New vented slipper assembly with ultra-hard shafts

and cups for long life

Top loading slipper/centre diff mount for easy access

Longer diff cups to allow for more droop

Suspension and Steering

12.8mm 2023 Type R shocks (Smooth Coated)

Suspension hangers with inserts for toe and anti-squat adjustment

Revised Ackermann geometry for improved steering feel

8 Degree CNC caster blocks

CNC alloy rear hubs

Hard wishbones

New shorter black ball cups

New high tensile steel turnbuckles

Specifications

Type: 1/10th 4wd Off Road

Power Source: Electric

Wheelbase:287mm (variable)

Width:245mm-248mm

Gear Ratio: 2.6:1

Weight:1680g-1720g race ready (varies)

Hardware: Full metric

Bearings: Sealed Metal Ball Bearings

Wheels:12mm hex

Kit: Assembly required

Items Required to Complete

2 Channel surface frequency radio s system

2S LiPo battery & compatible lipo charger

1/10 ESC, motor & pinion gear

High Speed Servo

1/10 tire and inserts

Tools paint for polycarbonate body, tire

Glue , threadlock

Silicon diff and shock oil

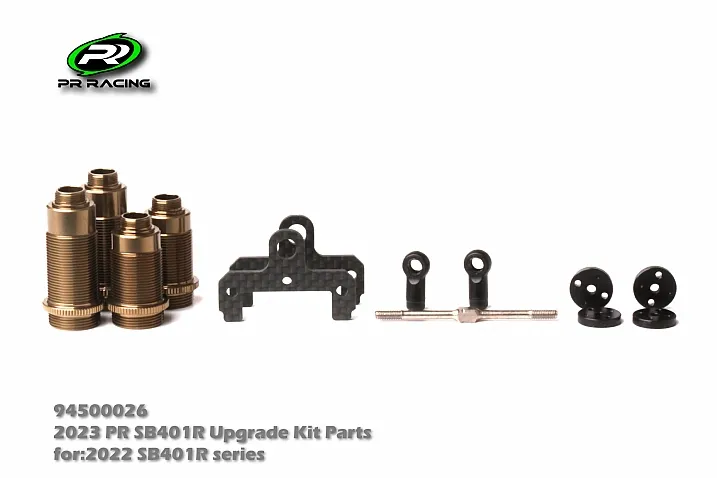

PART NO:94500026

Name:2023 PR SB401R Upgrade Kit Parts

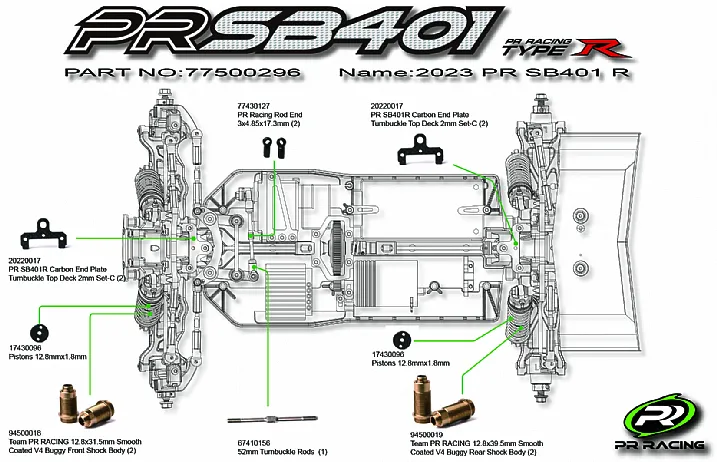

PR RACING Official Announcement: The new 2023 SB401R will be the smoothest and fastest SB401R yet. Improved performance once again, raising the bar for on track performance. Just 6 new parts will lead the way for this performance increase. Most notably, the super smooth coated shock bodies are in the kit.

Above is the 2023-SB401R conversion kit for 2022.#
