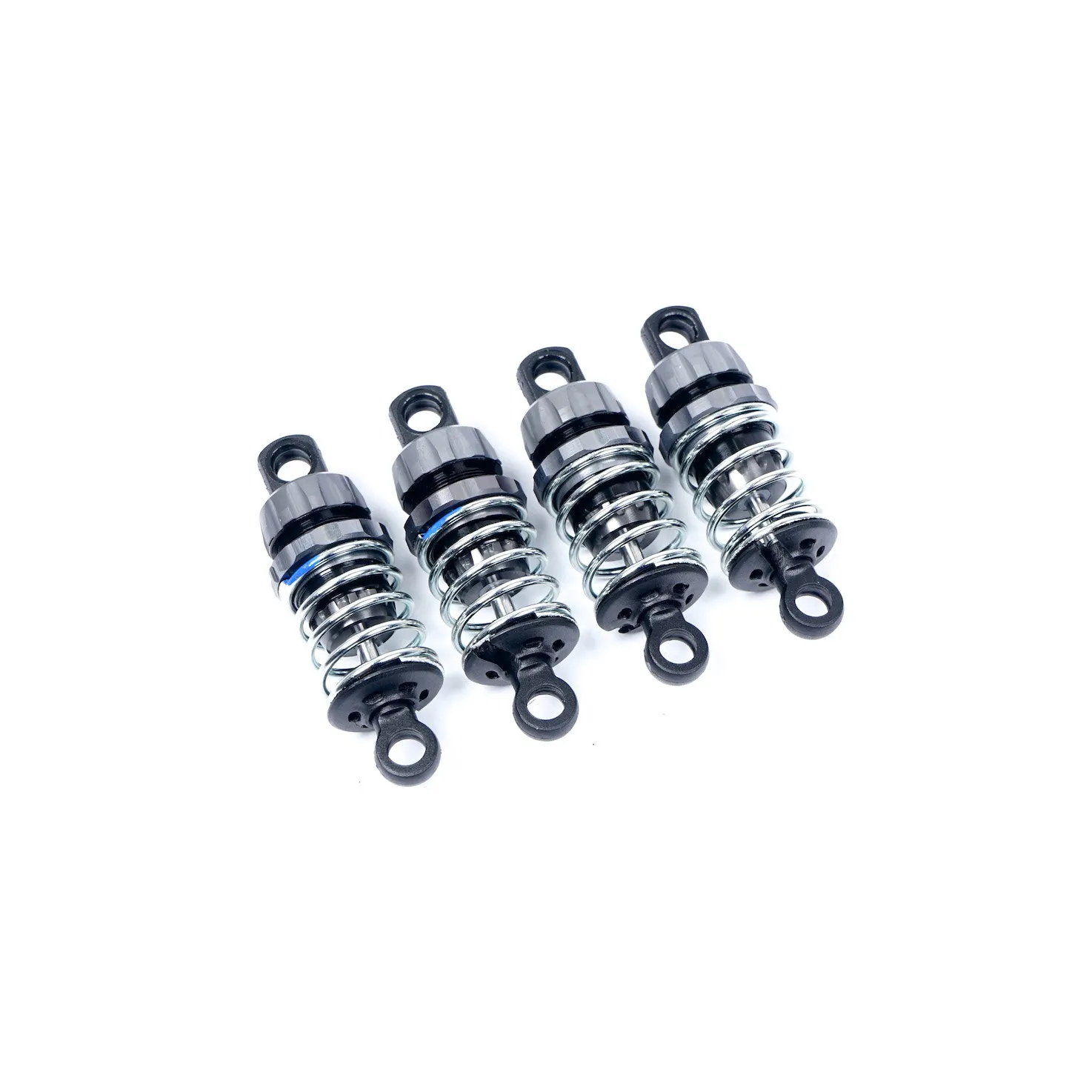

WildFire D08 – True Big Bore Short Touring Shocks Set

- True Big Bore Short (TBBS) Touring Shocks Set - D-05-VBC-0236 -

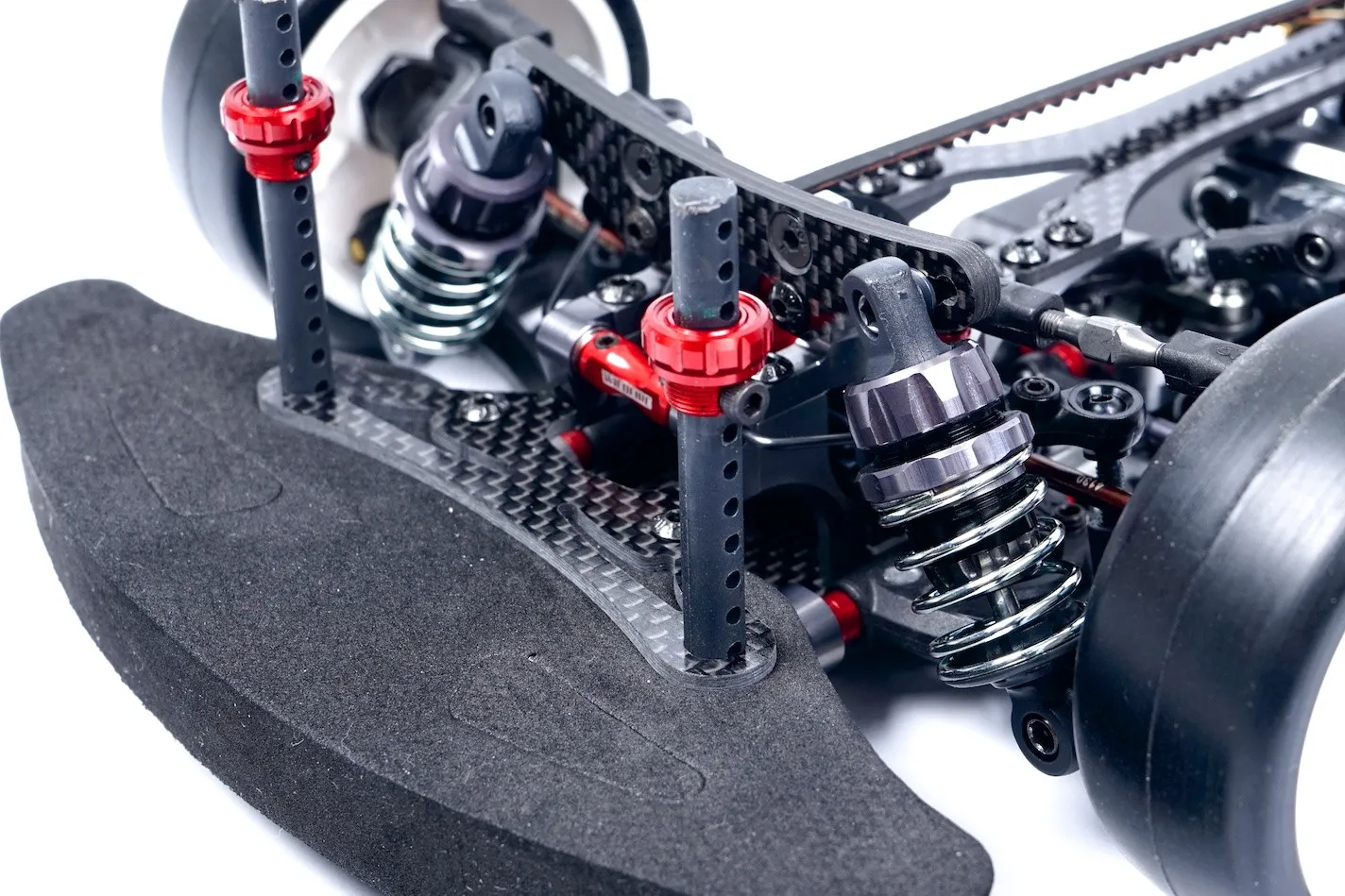

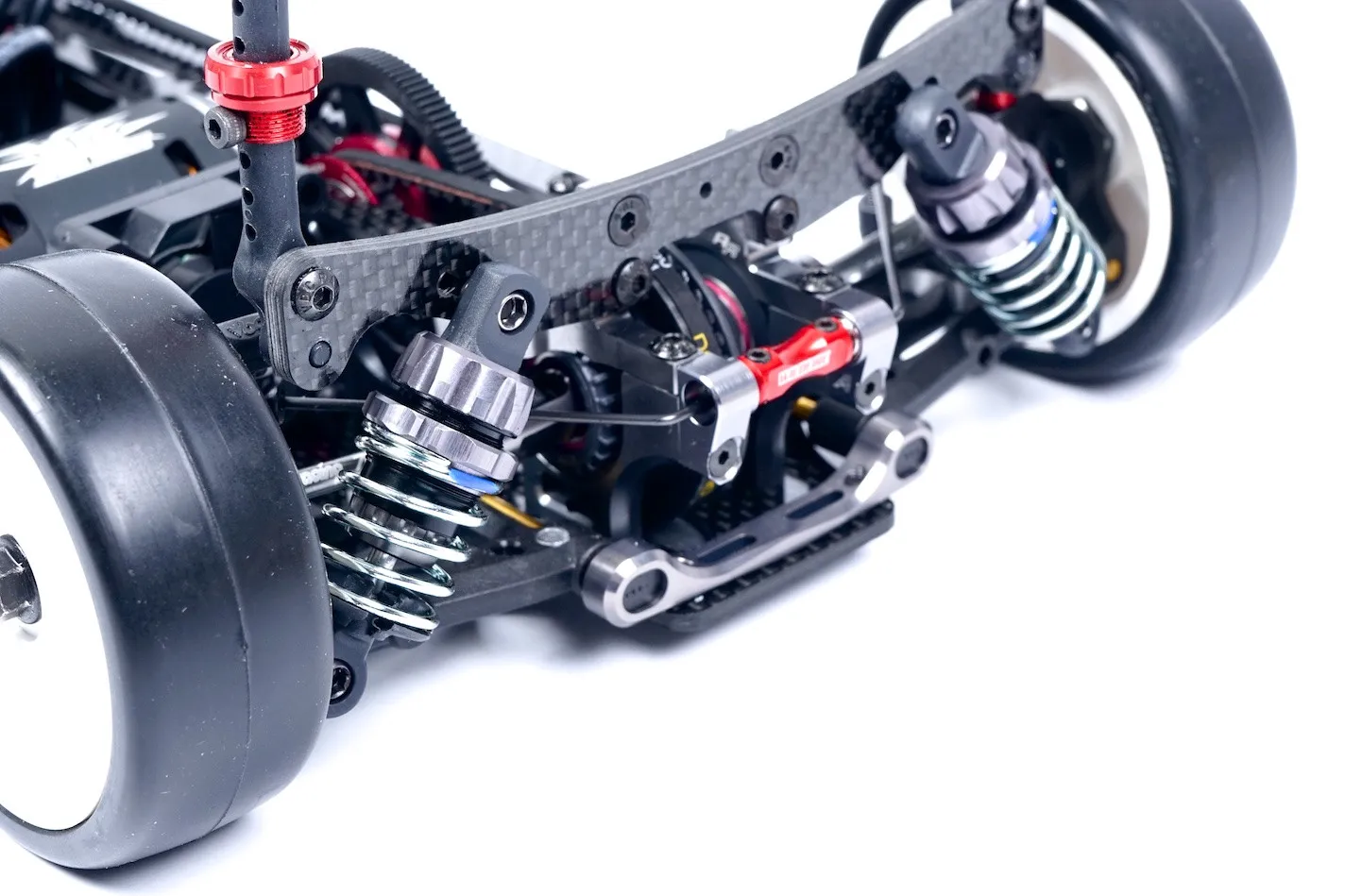

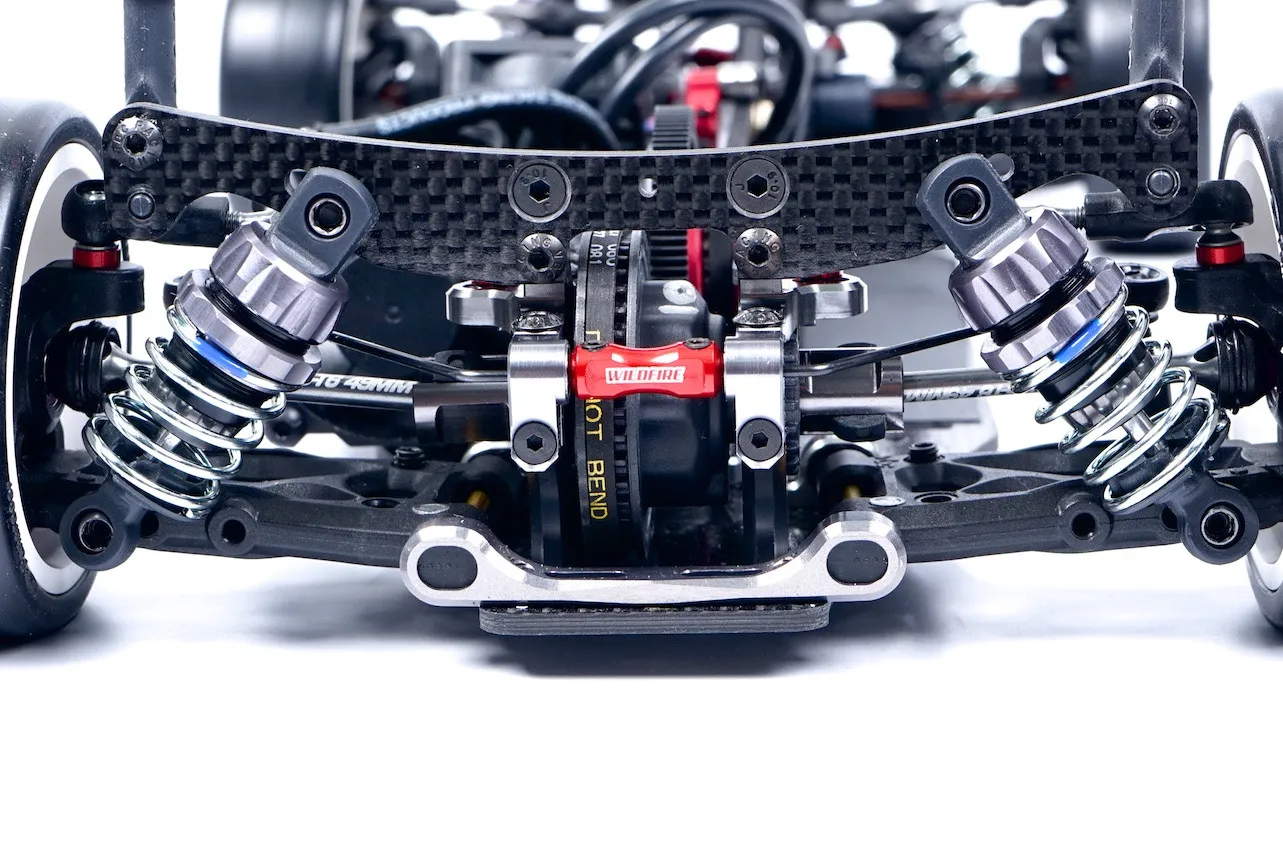

These are the new True Big Bore 'Short' (TBBS) shocks for the WildFireD08 and the shocks need to use in conjunction with WildFireD08 Graphite LCG Front/Rear Shock Tower for TBBS (Part#
A-01-G-30982
&
A-01-G-30983
). This setup provides lower centre of gravity and will give you a more stable handling in high traction tracks.

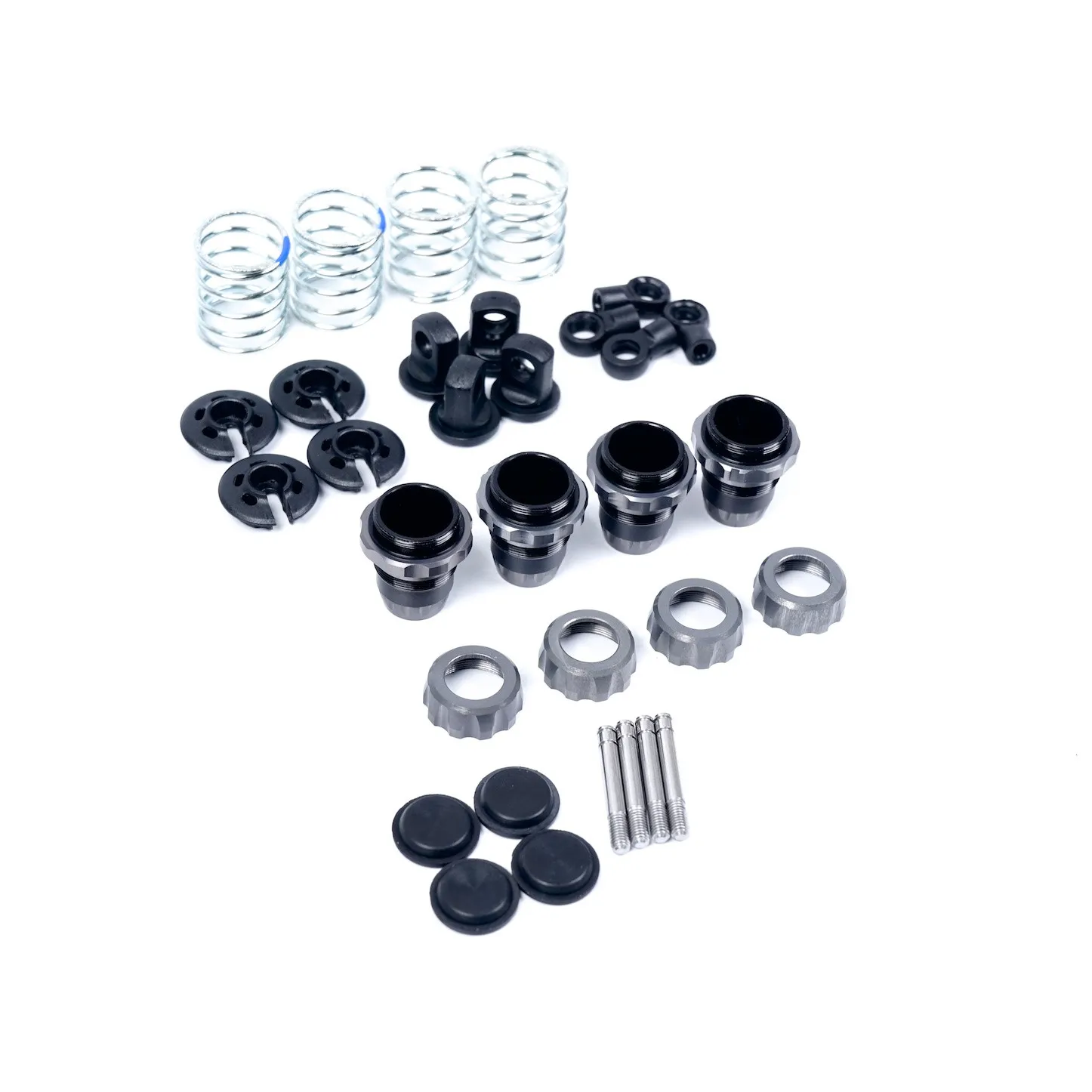

Package contains: -

B02G30955
TBBS Shock Body
4

B-02-VBC-0121
TBB Shock Height Adjuster
4

B02G30956
TBBS Bottom Cap
4

A-03-VBC-0138
TBB Shock Piston (4 holes)
4

A-03-VBC-0124
TBB Shock Bottom Connector
4

B-02-VBC-0125
TBB Shaft Cap
4

C02G30957
TBBS Shock Shaft
4

B-03-VBC-0128
TBB Sealer O-Ring (Shock Height Adjuster)
4

B-03-VBC-0012
TBB Shaft Sealer O-Ring
4

B-03-VBC-0129
M2 E-Clip
4

A-03-VBC-0130
TBB Shock Top Connector
10

A-03-VBC-0131
TBB Spring Bottom Support
4

B-03-VBC-0140
TBB Short Oil Sealer Cap (Medium Soft)
4

B-02-VBC-0133
TBB Shock Body Cap
4

N01G30991
SMJ Silver Line Spring TS2.8 (Short/Blue)
2

N01G30992
SMJ Silver Line Spring TS3.0 (Short/Silver)
2
