Arena33 - Andernach

MORE SETUP PROGRESS WITH NEW ETS SPEC

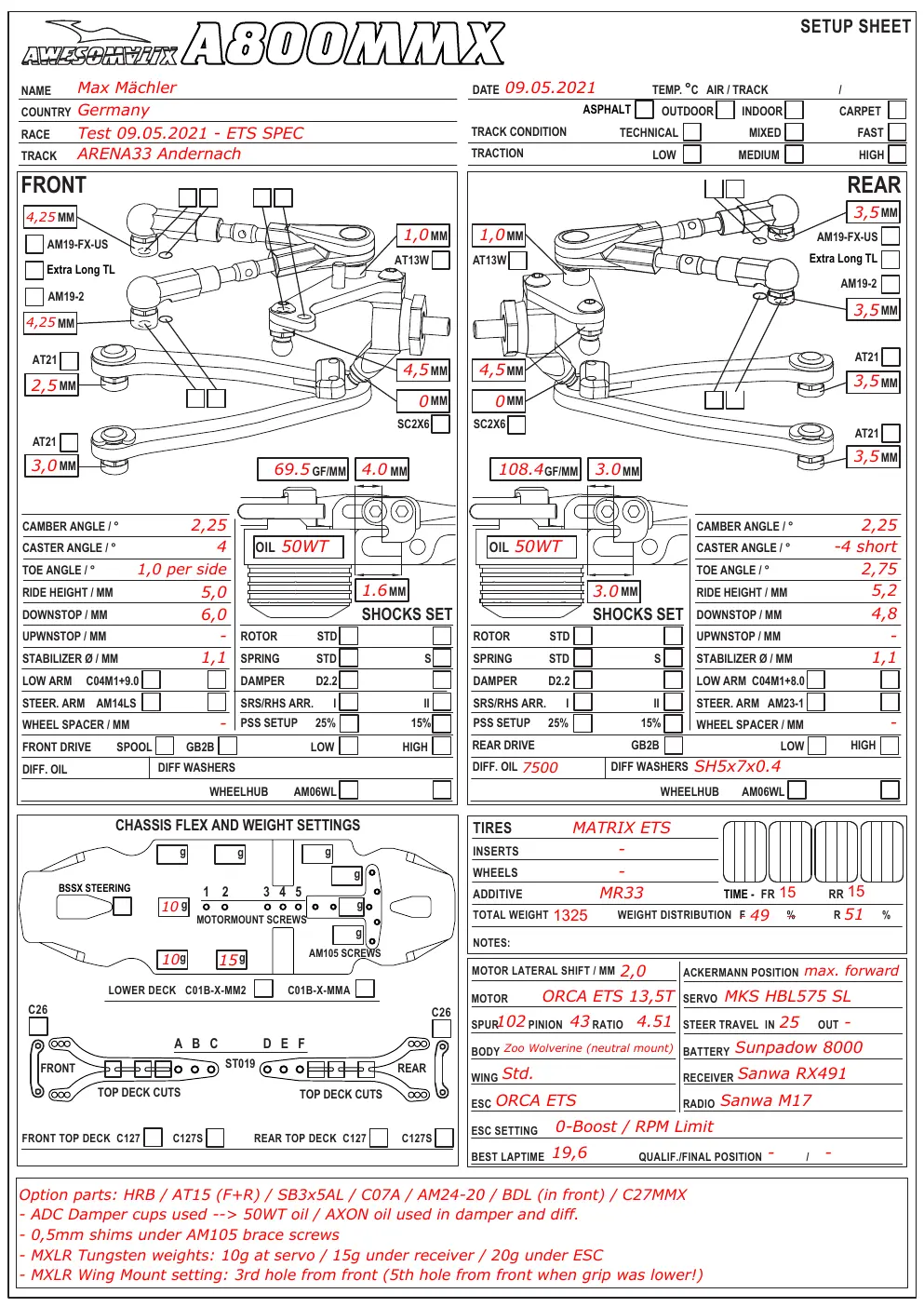

Well, the third tests brings the third setup sheet (setup test #1, setup test #2)

After careful studying my notes and reports from the past test days, I noted some similarities of the Matrix tires with a tire we used in the past. For this reason I digged out my old notes from some time ago and checked our setup changes and directions.

At the end of the test weekend I was able to improve the handling and lower the laptimes by following changes:

Softer spring setting in front 4,5mm front and rear bumpsteer shims Little higher inner toplinks oOnly 1,0mm under top outer ST03 ballstuds 0,5mm less shims under FF and FR lower arms Shorter rear wheelbase (-4deg short) Overall just some small changed here and there, but with a big overall effect and gain!

M. Machler

Source: M. Machler
